| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Brand | |
| Connector Style | |
| Connector Type | |
| Contact Base Material | |
| Contact Finish | |
| Contact Plating (Mating Area) | |
| Contact Type | |
| Current Rating (Amps) | |
| ELV | |
| Features | |
| Housing Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Product Series | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Shielded | |
| Solder Tail Contact Plating | |
| Termination | |
| Termination Cover | |
| Termination Cover Method | |
| Termination Cover Type | |
| Termination Style | |
| Wire Insulation Diameter | |
| Wire/Cable Type |

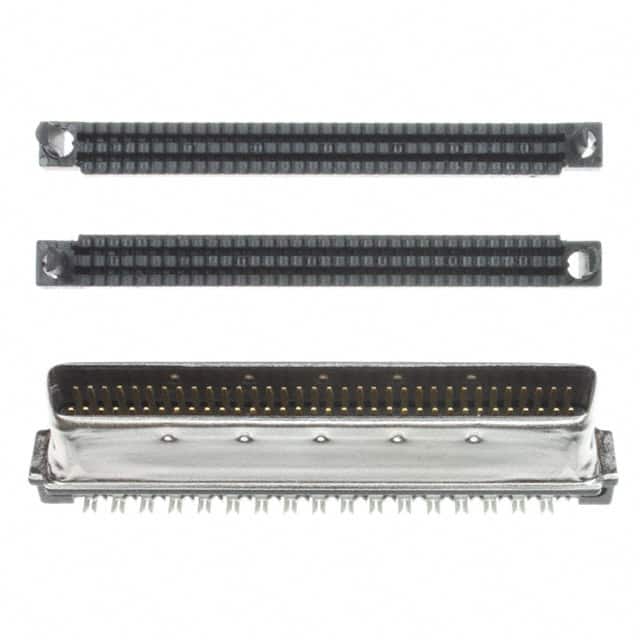

The TE Connectivity 5749621-7 is a 68-position D-Sub (D-Type) plug connector designed for use with round jacketed ribbon cable. It utilizes insulation displacement contact (IDC) termination, allowing for quick and reliable cable assembly without stripping the insulation. The connector is part of the AMPLIMITE .050 Series and features a shielded shell to reduce electromagnetic interference (EMI).
Key specifications include a current rating of 1 A per contact, gold flash over palladium nickel contact plating in the mating area, and a thermoplastic housing with UL94 V-0 flammability rating. The shell material is steel with tin-nickel plating. The connector is free-hanging (in-line) and includes a termination cover that is unassembled, providing flexibility for custom cable assembly.
This connector is suitable for applications requiring high-density signal connections, such as SCSI interfaces, computer peripherals, and industrial control systems. The 2-row, 68-position layout provides ample I/O capacity in a compact form factor. The RoHS and ELV compliance ensures suitability for environmentally conscious designs.
The connector has 68 positions arranged in 2 rows.
The contact pitch is 0.050 inch (1.27 mm) with a row-to-row spacing of 0.100 inch.
The current rating is 1 A per contact.
The mounting style is free hanging (in-line).
The termination style is IDC (Insulation Displacement Contact) for ribbon cable.
Yes, the connector is shielded.
The housing is made of thermoplastic with a UL94 V-0 flammability rating.
