| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| SVHC Present | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

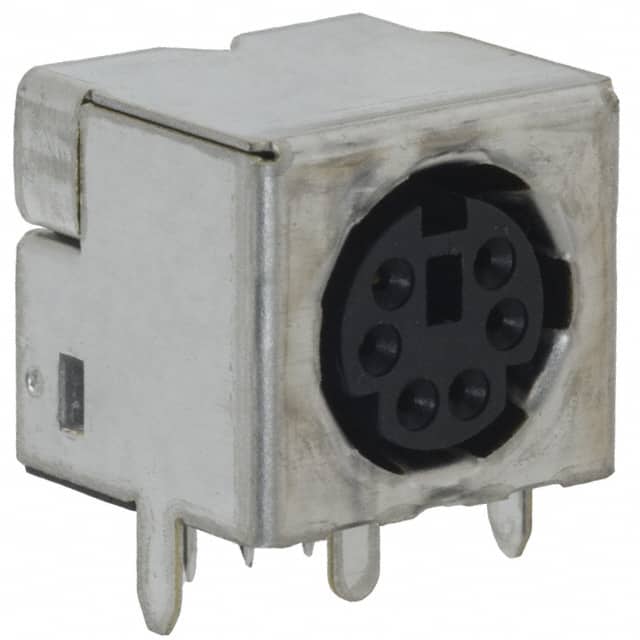

The TE Connectivity 5749266-1 is a 6-position Mini DIN receptacle connector with female socket contacts. It features a shielded thermoplastic shell with a keyed orientation and push-pull fastening mechanism. The connector is rated for 1 A current and 30 VDC voltage, with gold-plated contacts ensuring reliable electrical performance. It is designed for through hole mounting with a right angle orientation and solder termination. The operating temperature range is -55°C to 105°C, and the material flammability rating is UL94 V-0. This connector is suitable for general-purpose signal and power connections in compact electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.34 | $3.34 |
| 10+ | $2.93 | $2.93 |
| 25+ | $2.53 | $2.53 |
| 120+ | $2.45 | $2.45 |
| 280+ | $2.31 | $2.31 |
| 520+ | $2.21 | $2.21 |
| 1,000+ | $1.93 | $1.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
1 A.
30 VDC.
Through Hole, Right Angle.
Receptacle, Female Sockets.
Mini DIN.
Yes, shielded.
