| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
370 pcs
|
370 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Package / Case | |
| Primary Material | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

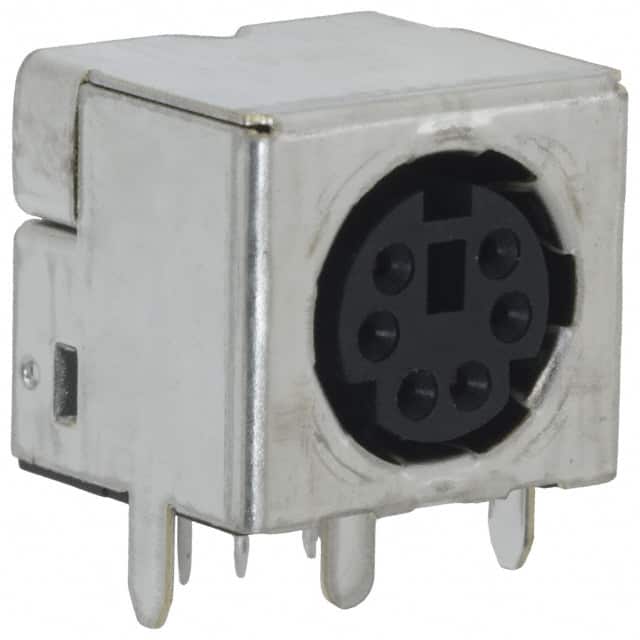

The TE Connectivity 5749265-1 is a 6-position Mini DIN receptacle connector designed for reliable signal and power connections in compact electronic assemblies. It features female socket contacts with gold plating for corrosion resistance and reliable conductivity. The connector is shielded to reduce electromagnetic interference, making it suitable for applications requiring signal integrity.
This receptacle uses a push-pull fastening mechanism and keyed orientation to ensure correct mating and secure connection. It is rated for 30 VDC and 1 A per contact, with an operating temperature range of -55°C to 105°C. The thermoplastic shell material meets UL94 V-0 flammability rating.
The connector is mounted through hole with a right angle orientation, allowing for space-saving PCB layouts. Termination is via solder, providing a robust mechanical and electrical connection. The part is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
Receptacle, Female Sockets.
6 positions.
Through Hole, Right Angle.
30 VDC.
1 A.
-55°C to 105°C.
RoHS3 Compliant (unverified).
