5749192-1 TE Connectivity 5749192-1 is a two-piece shielded D-Sub backshell with 40 positions and 180° cable exit.
Mfr Part #:

5749192-1

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5749192-1 is a two-piece shielded D-Sub backshell with 40 positions and 180° cable exit.
✓ Total Stock: 360 pcs

5749192-1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
180 pcs
On Request
180 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
180 pcs
On Request
180 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5749192-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
Shielding
View Similar Products (0)

5749192-1 Description

Short technical summary and product information.

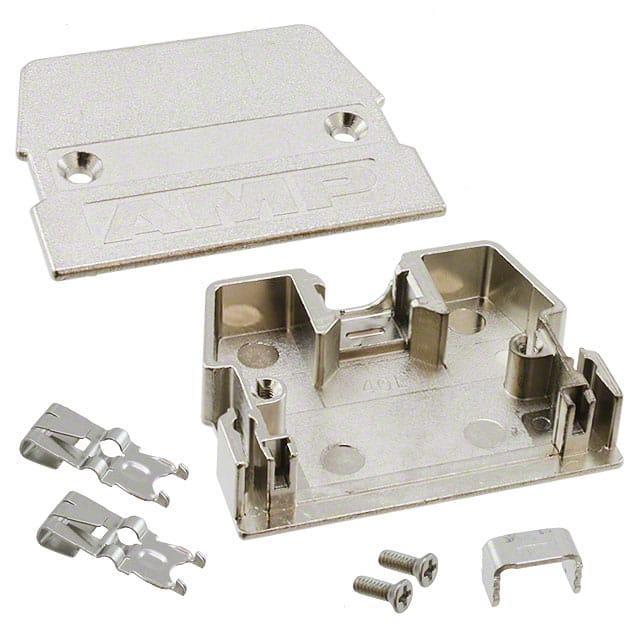

The TE Connectivity 5749192-1 is a two-piece D-Sub backshell designed for 40-position connectors. It features a 180° cable exit and is shielded for EMI protection. The backshell is constructed from zinc metal with a nickel over copper plating, providing durability and corrosion resistance. It includes a spring lock feature for secure mating and comes with assembly hardware and strain relief. The backshell is silver in color and accommodates round cables.

5749192-1 Quick Information

Product Type: D-Sub Backshell
Canonical Name: TE Connectivity 5749192-1 D-Sub Backshell, 40 Position, 180° Cable Exit, Shielded
Subcategory: D-Sub Backshell

5749192-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

5749192-1 Features

  • Two piece shielded D-Sub backshell.
  • 40 position connector compatibility.
  • 180° cable exit for straight routing.
  • Nickel over copper plated zinc metal.
  • Includes spring lock and strain relief.

5749192-1 Applications

  • Used in industrial D-Sub connector assemblies.
  • Suitable for EMI sensitive cable applications.
  • Ideal for 40-pin round cable terminations.

5749192-1 FAQs

5 frequently asked questions generated from this part’s specifications.
What type of accessory is the 5749192-1?

It is a two piece backshell for D-Sub connectors.

How many positions does this backshell support?

It supports 40 positions.

What is the cable exit angle?

The cable exit is 180 degrees.

Is the backshell shielded?

Yes, it is shielded.

What material is the backshell made of?

It is made of metal, zinc with nickel over copper plating.

5749192-1 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
749192-1
749192-1
TE Connectivity
CONN BACKSHELL 40POS 180DEG SHLD
View Part
