| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
185 pcs
|
185 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| SVHC Present | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

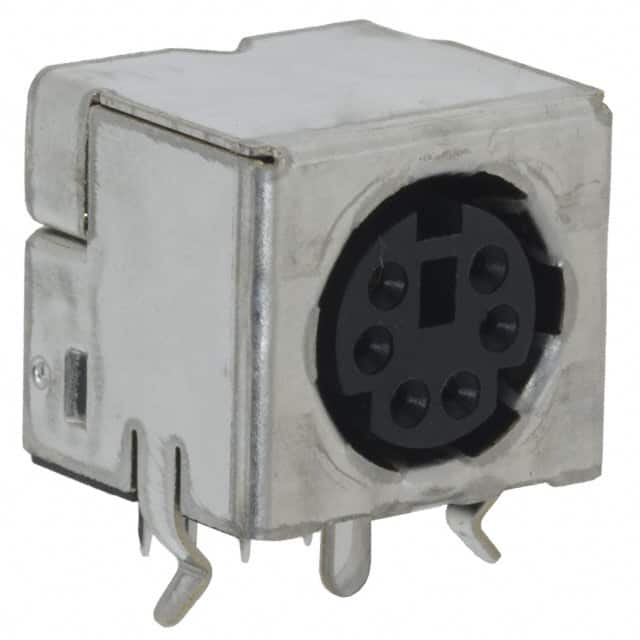

Part 5749180-1 is a Mini DIN receptacle connector from TE Connectivity. It features 6 positions with female socket contacts, designed for through hole right angle mounting via solder termination. The connector is shielded for EMI protection and includes a board lock feature for secure attachment to the PCB.
The housing is made of UL94 V-0 rated thermoplastic, ensuring flame retardancy. Contacts are gold plated for reliable electrical connections. The fastening type is push-pull, and the orientation is keyed to prevent misalignment.
Electrical ratings include a current rating of 1 A and voltage rating of 30 VDC. The operating temperature range is -55°C to 105°C, suitable for various environments. This connector is commonly used in audio/video equipment, data interfaces, and industrial control applications.
6 positions.
1 A.
30 VDC.
Through hole, right angle.
-55°C to 105°C.
Yes, it is shielded.
Push-pull.
