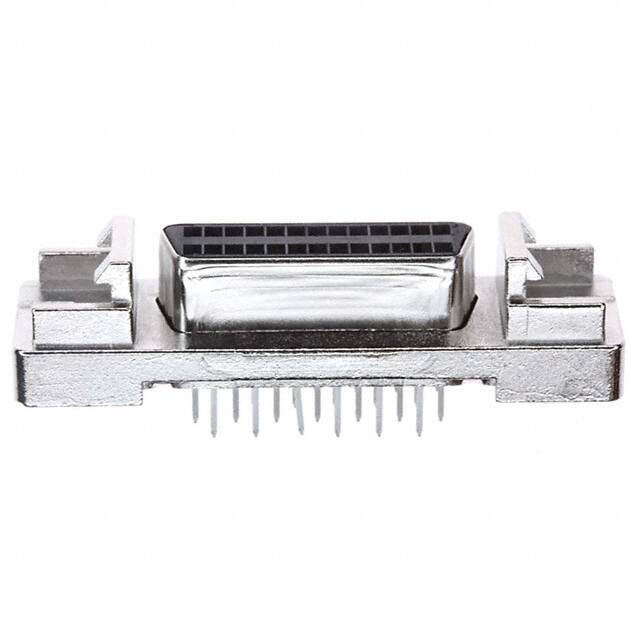

The TE Connectivity AMPLIMITE 0.50 Series 5749069-2 is a compact, shielded D-Sub receptacle designed for cable-to-board applications. This component features 26 signal contacts arranged in 4 rows with a 1.27 mm centerline pitch and a 2.54 mm row-to-row spacing, enabling dense board designs.
For electrical performance, each contact is rated for a maximum current of 1 A. The contacts are made of phosphor bronze with a palladium nickel underplate and a gold or gold flash (30 µ" minimum) mating area plating, ensuring reliable and durable connections. The shell provides shielding and is constructed from carbon steel with a tin over copper finish.
The connector is mounted through hole vertical on a printed circuit board. The housing is a black thermoplastic rated UL94 V-0 for flammability. It includes flange features with housing/shell 2-56 threads and latchblocks for secure mating. The package option is a tube containing 14 units.
The connector has 26 positions.
The centerline pitch is 1.27 mm.
The contact current rating is 1 A maximum.
The mounting type is through hole, vertical orientation.
The connector has 4 rows.
The operating temperature range is -55 to 105 °C.
Yes, it features a full metal shell for shielding.
