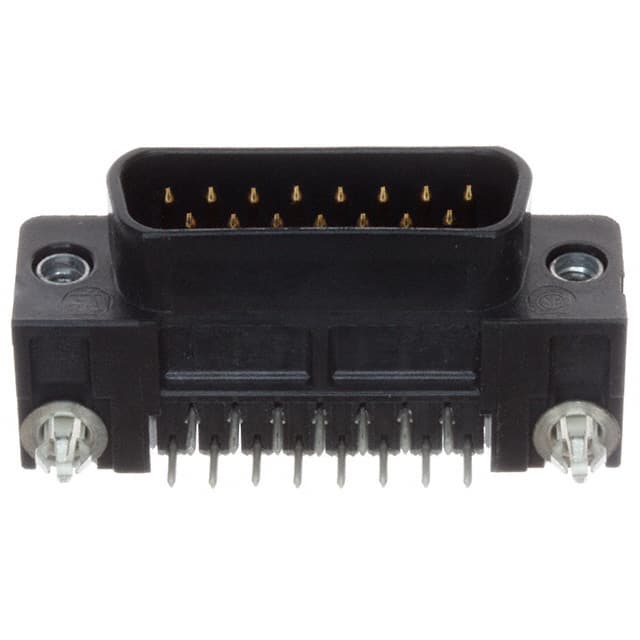

The TE Connectivity 5748904-1 is a 15-position D-Sub plug connector designed for board-to-board applications. It features a right angle through hole mounting configuration with a shell size of 2 (DA, A). The connector has two rows with a centerline pitch of 2.74 mm and row-to-row spacing of 2.84 mm.
The contacts are made of brass with a gold plating on the mating area (30 µin) and a nickel underplating, while the termination area is tin plated. The connector is rated for a maximum contact current of 2.7 A and operates over a temperature range of -55°C to 105°C. It includes a board lock feature for secure PCB retention and threaded inserts (4-40) for mating retention.
The housing is made of nylon and polyester GF, black in color, with a UL 94V-0 flammability rating. The termination method is through hole solder with a post length of 3.18 mm. The connector is part of the AMPLIMITE series and is packaged in quantities of 104 per package.
15 positions.
2.74 mm.
2.7 A.
Through hole, right angle.
2 (DA, A).
-55°C to 105°C.
Gold, 30 µin (0.76 µm) on mating area.
