| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| China RoHS | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| ELV | |
| Flange Feature | |
| Halogen Content | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Size, Connector Layout | |
| Solder Process Capability | |
| Termination |

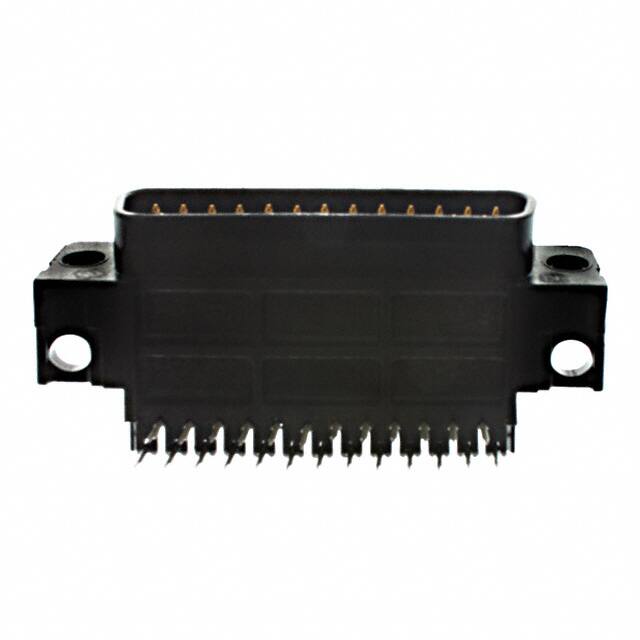

The TE Connectivity 5748873-1 is a 25-position D-Sub plug connector from the AMP III series. It features male pins arranged in 2 rows with a DB-3 shell size. The connector is designed for through hole, right angle mounting with solder termination. Contacts are gold plated with 30.0µin thickness for reliable signal transmission. The housing is rated UL94 V-0 for flammability. The connector is compliant with EU RoHS, ELV, China RoHS, and REACH regulations. It is wave solder capable up to 265°C and is halogen-free (BFR/CFR/PVC free). This plug is suitable for industrial, data communication, and test equipment applications requiring a rugged D-Sub interface.
25 positions.
6A per contact.
Through hole, right angle.
Yes, compliant with EU RoHS Directive 2011/65/EU including 2015/863.
Gold, 30.0µin (0.76µm) thickness.
DB-3 (B shell size).
UL94 V-0.
