5748676-3 TE Connectivity 5748676-3 is a two-piece D-Sub backshell for 25-position connectors with 180° cable exit and shielding.
Mfr Part #:

5748676-3

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5748676-3 is a two-piece D-Sub backshell for 25-position connectors with 180° cable exit and shielding.
✓ Total Stock: 345 pcs

5748676-3 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
327 pcs
On Request
327 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
18 pcs
On Request
18 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5748676-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
Shielding
View Similar Products (0)

5748676-3 Description

Short technical summary and product information.

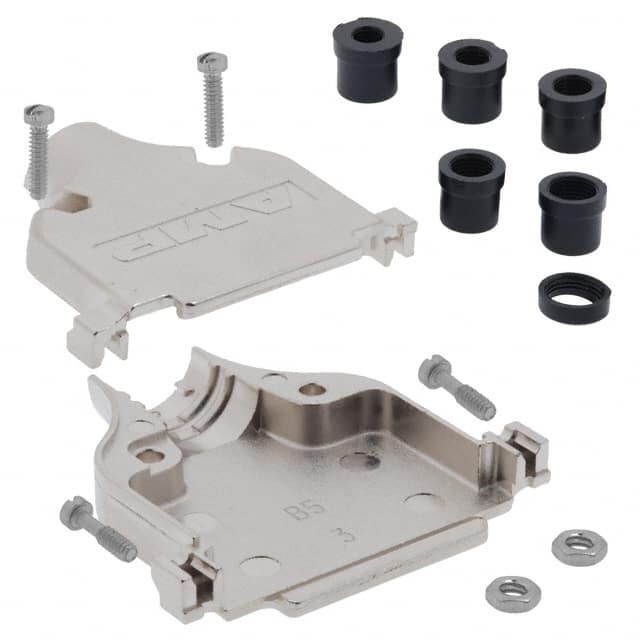

The TE Connectivity 5748676-3 is a two-piece D-Sub backshell designed for 25-position D-Sub connectors. It features a 180° cable exit angle and is shielded for EMI protection. The backshell is constructed from zinc alloy with nickel over copper plating, providing durability and corrosion resistance.



This backshell includes assembly hardware and grommets for secure cable management. It is designed for use with round cable types and includes mating screws 4-40 for reliable connection to the D-Sub connector. The silver color finish offers a professional appearance.



Typical applications include industrial control systems, data communication equipment, and other environments requiring shielded cable termination for D-Sub connectors.

5748676-3 Quick Information

Product Type: D-Sub Backshell
Canonical Name: D-Sub Backshell, Two Piece, 25 Position, 180° Cable Exit, Shielded
Subcategory: D-Sub Backshells

5748676-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5748676-3 Features

  • Two-piece D-Sub backshell for 25 positions.
  • 180° cable exit angle for straight cable routing.
  • Shielded construction for EMI protection.
  • Zinc alloy with nickel over copper plating.
  • Includes mating screws 4-40 and assembly hardware.

5748676-3 Applications

  • Ideal for shielded D-Sub cable assemblies.
  • Used in industrial control and automation systems.
  • Suitable for data communication equipment.
  • Applicable in test and measurement devices.

5748676-3 FAQs

5 frequently asked questions generated from this part’s specifications.
What type of backshell is the 5748676-3?

It is a two-piece D-Sub backshell.

How many positions does the 5748676-3 backshell support?

It supports 25 positions.

What is the cable exit angle of the 5748676-3?

The cable exit angle is 180°.

Is the 5748676-3 backshell shielded?

Yes, it is shielded.

What material is the 5748676-3 backshell made of?

It is made of zinc alloy with nickel over copper plating.
