| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

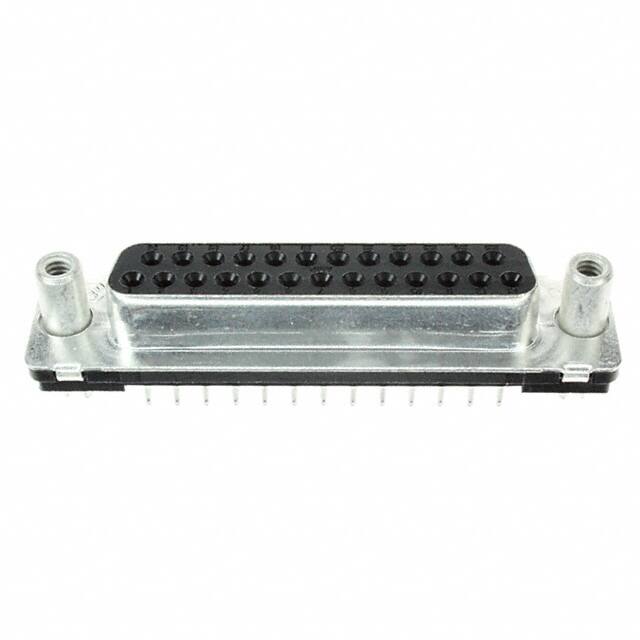

The TE Connectivity 5748612-1 is a D-Sub receptacle connector featuring 25 positions arranged in 2 rows. It uses female socket contacts rated for signal applications with a current rating of 6 A. The contacts are finished with gold (0.76 µm thickness) for reliable conductivity.
This connector is designed for through-hole mounting with solder termination, making it suitable for vertical PCB installation. The shell is steel with tin plating, and the flange includes a mating side female screwlock (4-40) for secure connection. A board lock feature aids in retention during assembly.
The insulator material has a UL94 V-0 flammability rating, indicating good flame resistance. This connector is commonly used in data communication, industrial control, and instrumentation applications requiring a robust D-Sub interface.
The connector has 25 positions arranged in 2 rows.
The current rating is 6 A per contact.
It is a through-hole mount connector with solder termination.
The contacts have a gold finish with a thickness of 0.76 µm.
The shell is steel with tin plating.
Yes, it includes a board lock feature.
The material has a UL94 V-0 flammability rating.
