| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Features | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Finish Thickness | |
| Shell Material, Finish | |
| Shell Size, Connector Layout |

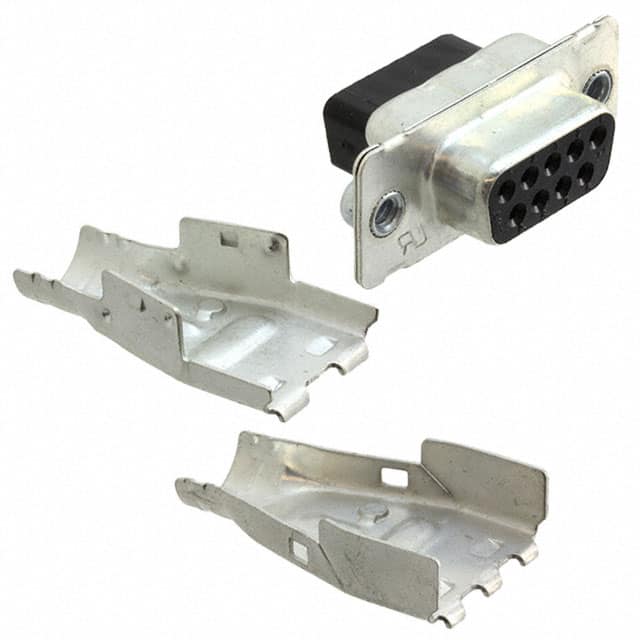

The TE Connectivity 5748536-1 is a D-Sub receptacle housing designed for use with female signal contacts. It features 9 positions arranged in 2 rows, following the DE (E) shell size layout. The housing is intended for free hanging (in-line) mounting, making it suitable for cable-to-cable or cable-to-panel applications where a panel cutout is not used.
This housing includes a shielded backshell and a cable-side flange with 4-40 threaded inserts for secure mating. The shell is constructed from steel with a tin-plated finish (200 microinches thickness) providing durability and EMI protection. The connector layout is standard for DE-9 style connectors.
As a housing only, contacts are ordered separately. The part is RoHS3 compliant and REACH unaffected per manufacturer declaration, though this compliance data is unverified. The MSL rating is 1 (unlimited) indicating no moisture sensitivity restrictions for storage or soldering.
D-Sub.
9 positions arranged in 2 rows.
Free hanging (in-line) mounting.
Yes, it includes a shielded backshell.
Steel with tin plating, 200µin (5.08µm) thickness.
Shell size 1 (DE, E).
Yes, a cable-side flange with 4-40 threads.
