| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

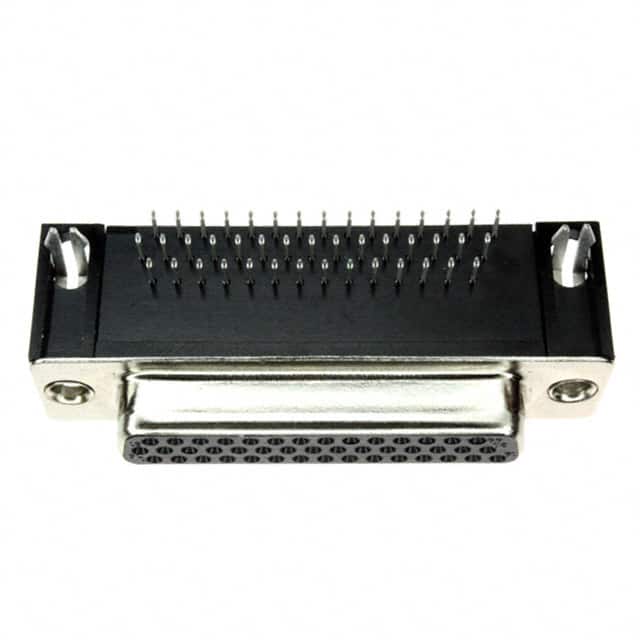

The TE Connectivity 5748482-5 is a 44-position high density D-Sub receptacle with female socket contacts. Designed for through hole right angle mounting with solder termination, this connector features gold plated contacts with 30.0 µin thickness for reliable signal integrity in demanding applications. The steel shell with nickel plating provides robust EMI shielding, and the integrated board lock ensures secure PCB retention.
This connector uses a 3 (DB, B) high density shell layout with 3 rows of contacts, rated for 2A current per contact. The insulator material meets UL94 V-0 flammability rating, and the flange feature (4-40 threaded insert) allows for mating hardware attachment. The right angle orientation is ideal for space-constrained designs where cables exit parallel to the board.
Typical applications include industrial control systems, data communication equipment, and test instrumentation where high density interconnects are required. The gold finish on contacts supports frequent mating cycles and low contact resistance.
44 positions arranged in 3 rows (high density layout).
2 A per contact.
Through hole, right angle with solder termination.
Gold with 30.0 µin (0.76 µm) thickness.
Yes, a board lock is included for secure PCB attachment.
UL94 V-0.
