| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

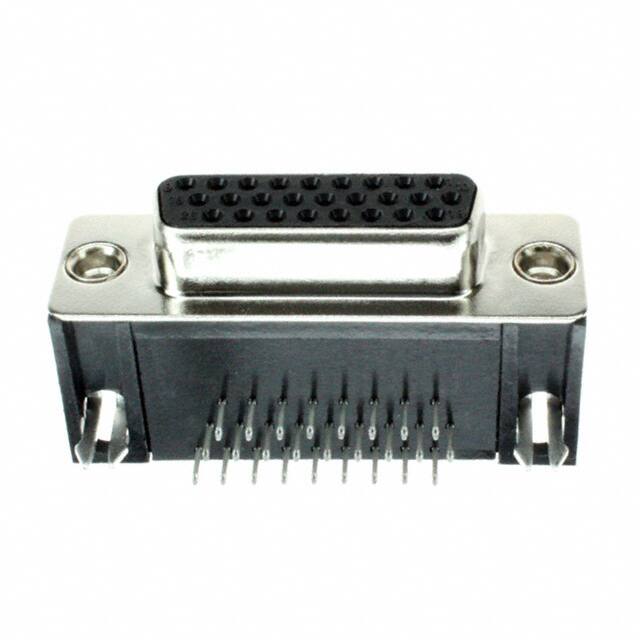

The TE Connectivity 5748481-5 is a high density D-Sub receptacle connector featuring 26 female socket contacts arranged in 3 rows. Designed for through hole right angle mounting, this connector uses solder termination for reliable PCB attachment.
The connector has a steel shell with nickel plating, and the signal contacts feature a 30.0µin (0.76µm) gold finish for reliable electrical performance. The shell size is 2 (DA, A) high density layout, and the flange feature uses a 4-40 housing/shell thread. An integrated board lock aids secure mounting. The insulation material is rated UL94 V-0 for flammability, and the connector is rated for 2A current per contact.
Typical applications include data communication equipment, industrial controls, and any system requiring a compact, high-density interface. The right angle configuration is ideal for daughtercard or mezzanine board connections where space is limited.
This connector has 26 positions arranged in 3 rows.
The current rating is 2A per contact.
Through hole, right angle mounting with solder termination.
The signal contacts have a gold finish with a thickness of 30.0µin (0.76µm).
The shell size is 2 (DA, A) High Density.
Yes, it includes a flange feature with housing/shell 4-40 thread and a board lock.
The insulator material is rated UL94 V-0.
