| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
255 pcs
|
255 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

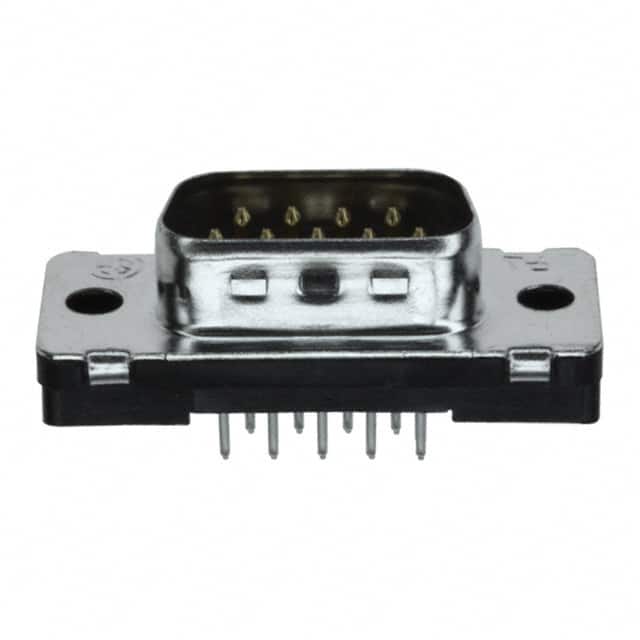

The TE Connectivity 5747871-2 is a standard D-Sub connector assembly designed for reliable signal interconnection. This plug connector features 9 male pins arranged in 2 rows, with a shell size of 1 (DE, E). It is terminated via through hole solder pins for permanent PCB attachment.
The connector is rated for a maximum current of 6 A per contact, with gold-plated contacts ensuring low resistance and corrosion resistance. The shell is constructed from steel with a tin-plated finish, and includes grounding indents for improved EMI performance. The insulator material meets UL94 V-0 flammability rating.
This connector is suitable for a wide range of data and signal applications requiring a compact, industry-standard D-Sub interface. The unthreaded housing/shell flange allows for simple panel mounting or mating with a corresponding receptacle.
D-Sub
9 positions
Through hole
6 A maximum
Gold
