| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

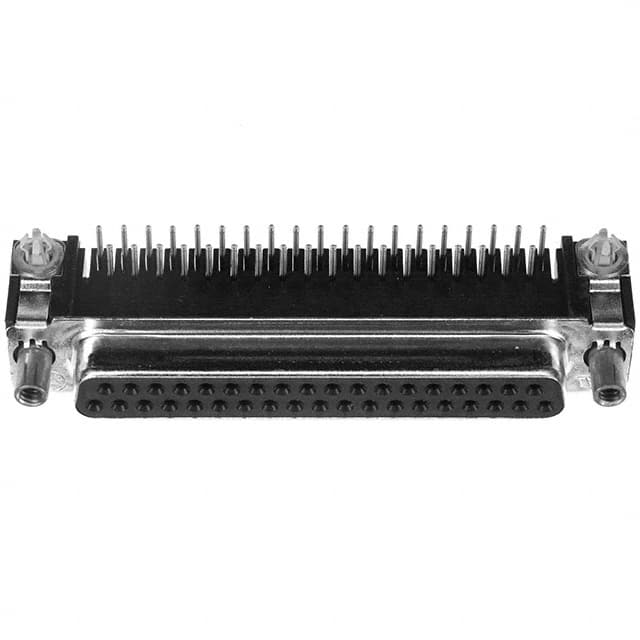

The 5747847-6 is a 37-position D-Sub receptacle connector manufactured by TE Connectivity. It features a female socket contact arrangement with 2 rows and is designed for right-angle through-hole mounting with solder termination. The connector has a steel shell with tin plating and is rated for shell size 4 (DC, C). It includes a flange feature with mating side female screwlock (4-40) and a backset spacing of 0.318 inches (8.08 mm). Additional features include board lock and ground strap for secure mounting and grounding.
The contacts are signal type with gold finish of 30 microinches (0.76 micrometers). The current rating is 6 amps. The insulator material has a flammability rating of UL94 V-0. This connector is suitable for various signal interconnection applications requiring a reliable D-Sub connection.
Compliance information: RoHS3 compliant, REACH unaffected, and MSL level 1 (unlimited) — all unverified. Please verify with manufacturer for current compliance status.
37 positions.
6A.
Through Hole, Right Angle.
Gold, 30µin (0.76µm).
4 (DC, C).
Mating Side, Female Screwlock (4-40).
Board Lock and Ground Strap.
