| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,498 pcs
|
1498 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,196 pcs
|
1196 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination |

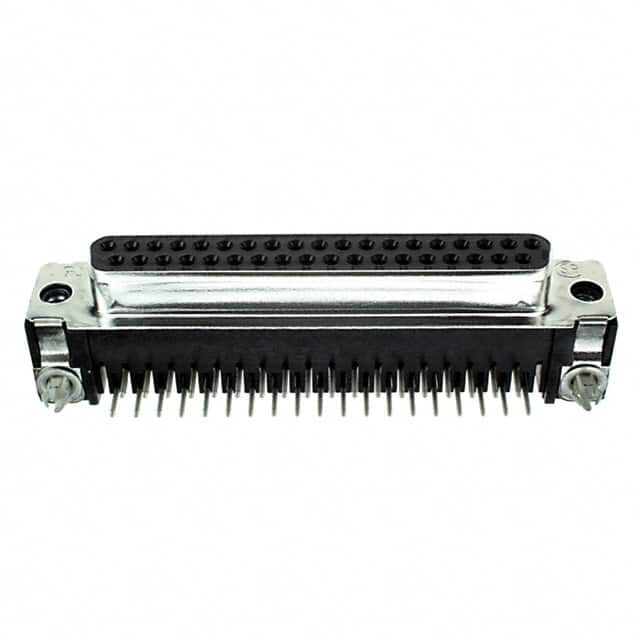

The TE Connectivity 5747847-4 is a 37-position D-Sub receptacle designed for reliable signal connections in industrial, data communication, and test equipment applications. It features a shell size of 4 (DC, C) with two rows of female sockets, providing a compact and standardized interface.
Electrical specifications include a maximum current rating of 6A per contact, with gold-plated contacts (30µin / 0.76µm) ensuring low resistance and corrosion resistance. The connector is mounted via through hole right angle configuration, allowing for space-saving PCB layouts. Solder termination provides secure electrical connections.
Mechanical features include a board lock and ground strap for enhanced stability and grounding, and a steel shell with tin plating for durability. The flange feature (housing/shell 4-40) accommodates standard hardware. The insulator material meets UL94 V-0 flammability rating, and the backset spacing is 0.318 inches (8.08mm).
Environmental compliance is listed as RoHS3 compliant, with an MSL of 1 (unlimited). The connector is suitable for applications requiring a robust and reliable D-Sub solution with right angle orientation.
37 positions.
6A maximum.
Through Hole, Right Angle.
Gold with 30µin (0.76µm) thickness.
Shell size 4 (DC, C).
Yes, it includes board lock and ground strap.
UL94 V-0.
