| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,016 pcs
|
2016 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
194 pcs
|
194 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

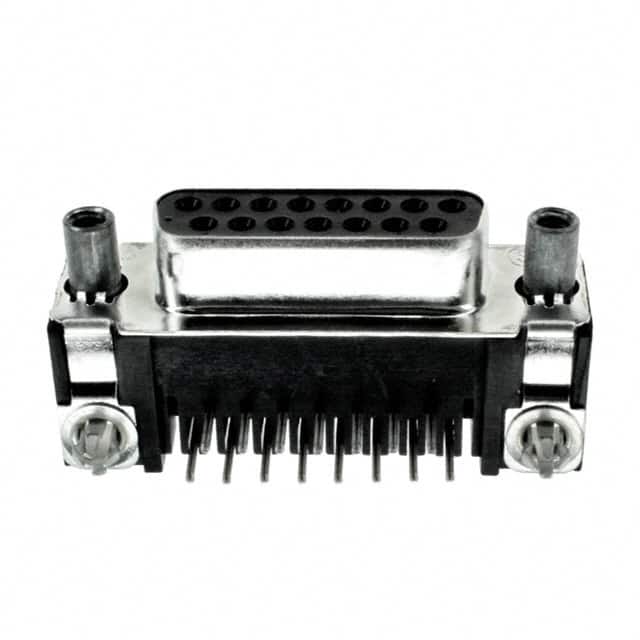

The TE Connectivity 5747845-6 is a D-Sub receptacle connector featuring 15 positions arranged in 2 rows. It uses female socket contacts with a gold finish of 30.0µin (0.76µm) for reliable signal transmission. The connector is designed for through hole, right angle mounting and terminated via solder.
This connector is rated for 6A current per contact and is housed in a steel shell with tin plating. The shell size is 2 (DA, A) and includes a flange feature with mating side female screwlock (4-40). Additional features include a board lock and ground strap for secure attachment and grounding. The backset spacing is 0.318" (8.08mm).
The insulator material has a flammability rating of UL94 V-0, suitable for applications requiring flame retardant materials. The connector is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
The connector has 15 positions arranged in 2 rows.
It is a through hole, right angle mount connector with solder termination.
The current rating is 6A per contact.
The contacts have a gold finish with a thickness of 30.0µin (0.76µm).
The shell is steel with tin plating.
The material flammability rating is UL94 V-0.
