| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
84 pcs
|
84 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

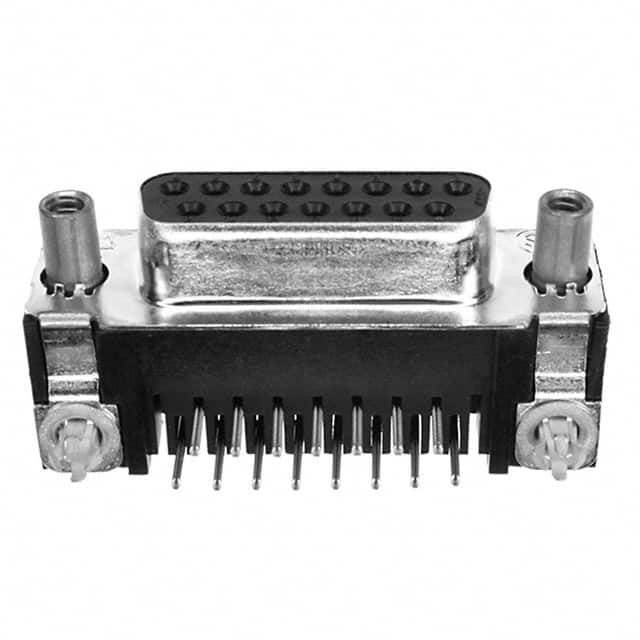

The TE Connectivity 5747845-5 is a D-Sub receptacle connector assembly featuring 15 positions arranged in 2 rows. It uses female socket contacts designed for signal applications and terminates via solder to a through-hole, right-angle mounting configuration.
The connector is rated for a current of 6 A and features gold-plated contacts with flash thickness for reliable signal integrity. The shell is made of steel with a tin-plated finish, and the flange includes a mating-side female screwlock (4-40) for secure connection. Additional features include a board lock and ground strap for mechanical stability and grounding.
The insulator material has a UL94 V-0 flammability rating, suitable for environments requiring flame retardance. The backset spacing is 0.318" (8.08 mm), and the shell size and connector layout are designated as 2 (DA, A).
| Qty | Low | High |
|---|---|---|
| 1+ | $6.27 | $6.27 |
| 10+ | $5.70 | $5.70 |
| 25+ | $5.40 | $5.40 |
| 50+ | $5.27 | $5.27 |
| 104+ | $5.02 | $5.02 |
| 208+ | $4.39 | $4.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 15 positions arranged in 2 rows.
The current rating is 6 A.
The mounting type is through hole, right angle with solder termination.
The contacts have a gold finish with flash thickness.
The shell is made of steel with a tin-plated finish.
Yes, it includes both a board lock and a ground strap.
The material flammability rating is UL94 V-0.
