| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,248 pcs
|
1248 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
96 pcs
|
96 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

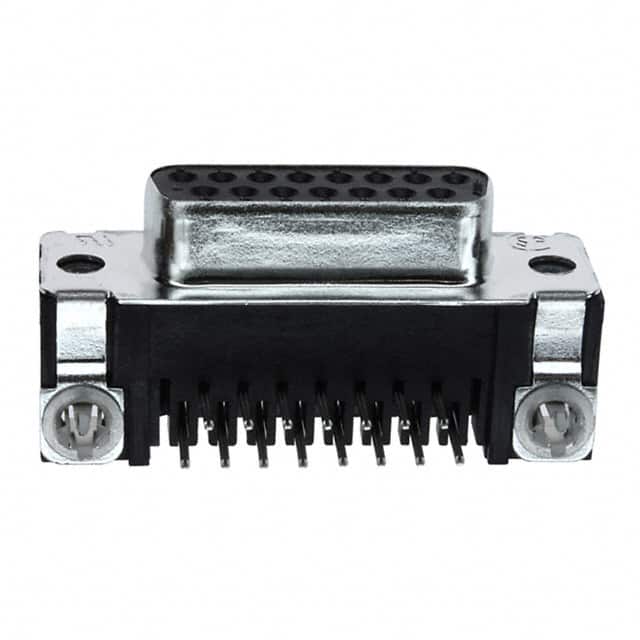

The TE Connectivity 5747845-4 is a D-Sub receptacle connector featuring 15 positions arranged in 2 rows. It uses female socket contacts with a gold finish of 30.0µin (0.76µm) for reliable signal transmission. The connector is designed for through-hole, right-angle mounting and uses solder termination.
This connector is rated for a current of 6A per contact and is intended for signal applications. It includes board lock and ground strap features for secure attachment and grounding. The shell is made of steel with a tin-plated finish, and the flange feature uses a housing/shell (4-40) thread. The backset spacing is 0.318" (8.08mm).
The connector layout corresponds to shell size 2 (DA, A). The insulator material has a flammability rating of UL94 V-0, indicating good flame retardance. This part is suitable for use in various electronic interconnect applications requiring a standard D-Sub form factor.
The connector has 15 positions arranged in 2 rows.
It is a through-hole, right-angle mount with solder termination.
The current rating is 6A per contact.
The contacts have a gold finish with a thickness of 30.0µin (0.76µm).
Yes, it includes a board lock and a ground strap.
