| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
520 pcs
|
520 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
256 pcs
|
256 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination |

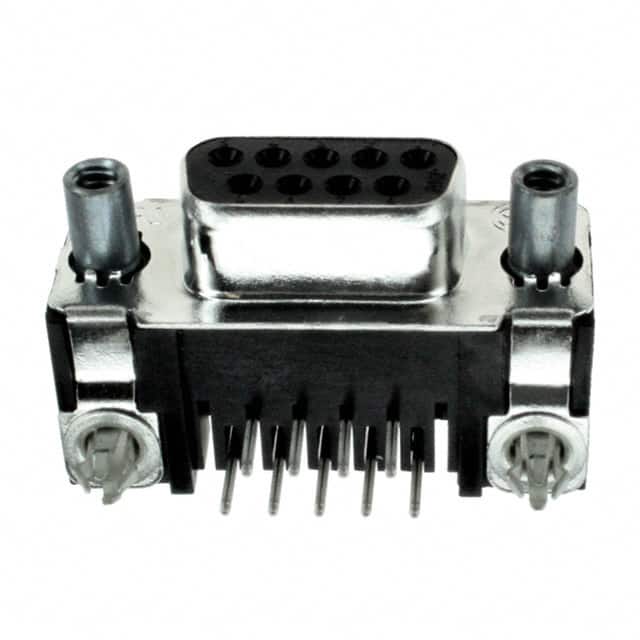

The TE Connectivity 5747844-6 is a 9-position D-Sub receptacle designed for reliable signal connections. It features female sockets arranged in 2 rows and uses through hole right angle mounting with solder termination, making it suitable for space-constrained PCB layouts.
Electrical and mechanical specifications include a current rating of 6A per contact, gold plated contacts with 30.0µin thickness for corrosion resistance and stable conductivity. The steel shell is tin plated, and the connector includes board lock and ground strap features for secure attachment and EMI management. The flange features mating side female screwlocks (4-40).
The connector uses UL94 V-0 rated insulation material, ensuring flame retardancy. Backset spacing is 0.318" (8.08mm), and the shell size is 1 (DE, E).
9 positions arranged in 2 rows.
Through hole, right angle.
6A per contact.
Gold finish, 30.0µin (0.76µm) thick.
UL94 V-0.
Yes, it includes board lock and ground strap.
Shell size 1 (DE, E).
