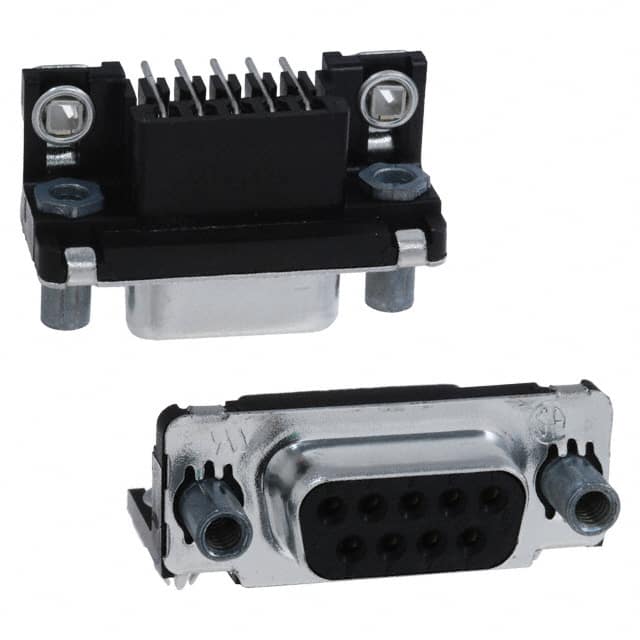

The TE Connectivity 5747844-5 is a 9-position D-Sub receptacle connector designed for reliable signal interconnections. It features female socket contacts with a gold flash finish for corrosion resistance and reliable conductivity. The connector uses a right angle through hole solder termination, making it suitable for PCB mounting where space constraints require a low-profile connection.
This connector is rated for 6A current per contact and is housed in a steel shell with a tin-plated finish for durability and EMI shielding. The shell size is 1 (DE, E), which is standard for 9-pin D-Sub connectors. It includes a flange feature with a mating side female screwlock (4-40) for secure mating, and features board locks and a ground strap for enhanced mechanical retention and grounding.
The insulator material has a UL94 V-0 flammability rating, ensuring compliance with fire safety standards. The backset spacing is 0.318 inches (8.08mm), which defines the offset from the PCB edge.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.95 | $3.95 |
| 10+ | $3.81 | $3.81 |
| 25+ | $3.16 | $3.16 |
| 100+ | $2.95 | $2.95 |
| 260+ | $2.72 | $2.72 |
| 520+ | $2.61 | $2.61 |
| 1,040+ | $2.42 | $2.42 |
| 2,600+ | $2.27 | $2.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a D-Sub receptacle with female sockets.
It has 9 positions arranged in 2 rows.
It is a through hole, right angle mount with solder termination.
The current rating is 6A per contact.
The contacts have a gold flash finish.
The shell is steel with a tin-plated finish.
The material flammability rating is UL94 V-0.
