| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Industrial Grade | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

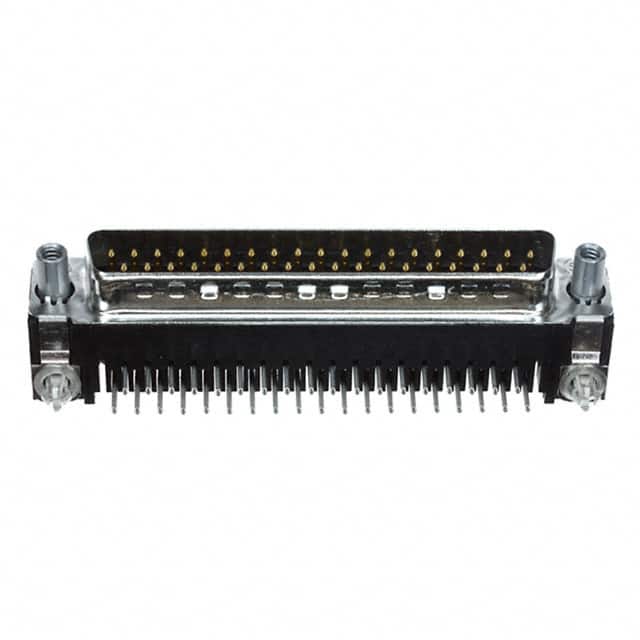

The TE Connectivity 5747843-6 is a 37-position D-Sub plug connector with male pins. It features a right angle through-hole mounting style with solder termination, making it suitable for compact PCB layouts. The signal contacts are gold-plated for reliable conductivity and are rated for 6A. The connector has a shell size of 4 (DC, C) with a steel, tin-plated shell and includes a mating side female screwlock (4-40) flange feature. Backset spacing is 0.318" (8.08mm). Additional features include board lock and grounding indents for secure attachment and EMI protection. The insulator material has a UL94 V-0 flammability rating. This connector is listed as RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is commonly used in industrial control, data communication, and computer peripheral applications where a robust D-Sub interconnect is required.
37 positions.
6A.
Through hole, right angle.
4 (DC, C).
Gold.
Yes, it features board lock and grounding indents.
UL94 V-0.
