| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Industrial Grade | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

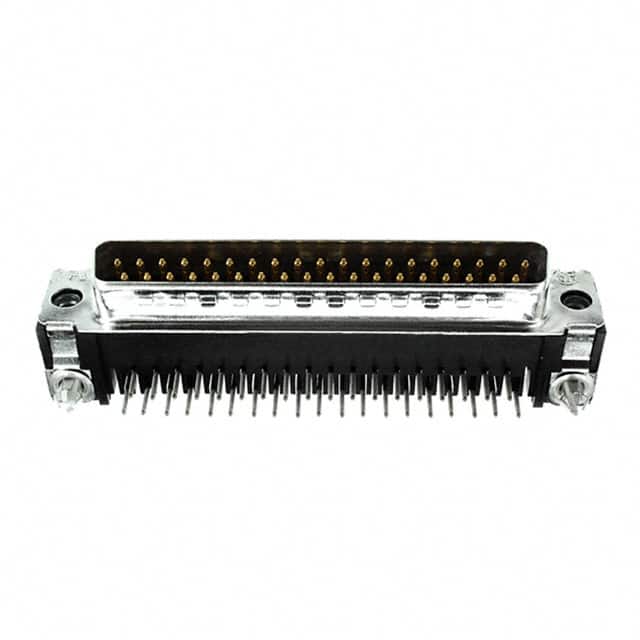

The TE Connectivity 5747843-4 is a D-Sub plug connector featuring 37 male pins arranged in 2 rows. It uses a right-angle through-hole mounting style with solder termination, making it suitable for dense PCB layouts where cable entries must be oriented parallel to the board. The connector has shell size 4 (DC, C) with a steel shell that is tin plated for durability and EMI shielding. Contacts are gold-plated for reliable signal transfer. Electrical rating is 6A per contact.
Additional features include board locks for secure PCB retention and grounding indents for improved grounding. The insulator material is rated UL94 V-0 for flammability. Backset spacing is 0.318" (8.08mm) for proper alignment. This connector is designed for signal applications in data communication, industrial control, and computer peripheral interfaces.
37 positions arranged in 2 rows.
6 A per contact.
Through hole, right angle with solder termination.
Gold.
4 (DC, C).
Board lock and grounding indents.
