5747842-5

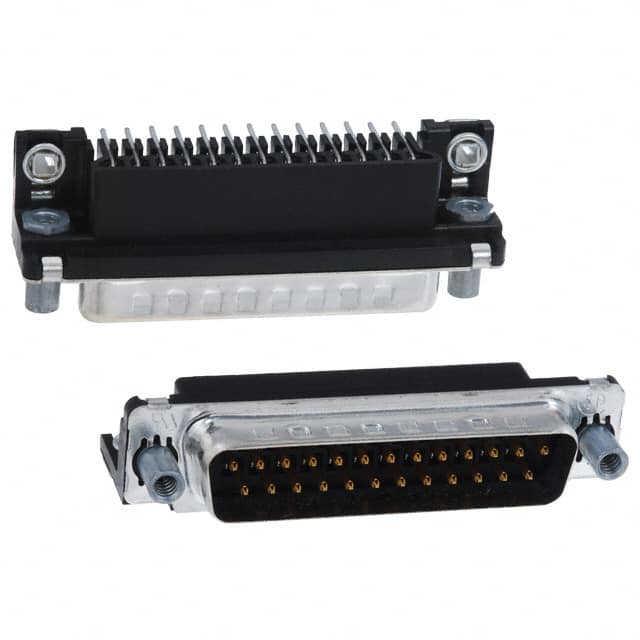

This D-Sub connector plug from TE Connectivity features 25 positions arranged in 2 rows, with male pins and signal contacts. It is designed for through-hole mounting with a right angle orientation, making it suitable for compact PCB layouts where space is limited. The termination is solder type, providing a reliable connection. The contacts are gold flash finished, ensuring good conductivity and corrosion resistance. The shell is constructed from steel with a tin-plated finish, offering durability and electromagnetic shielding. The connector has a shell size of 3 (DB, B) and includes a flange feature with mating side female screwlock (4-40) for secure mating. Additional features include board lock, ground strap, and grounding indents to enhance mechanical stability and grounding. The insulator material has a flammability rating of UL94 V-0, ensuring fire safety. The backset spacing is 0.318 inches (8.08 mm). This connector is commonly used in data communication, industrial control, and computer peripheral applications requiring reliable signal transmission.
