| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
455 pcs
|
455 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

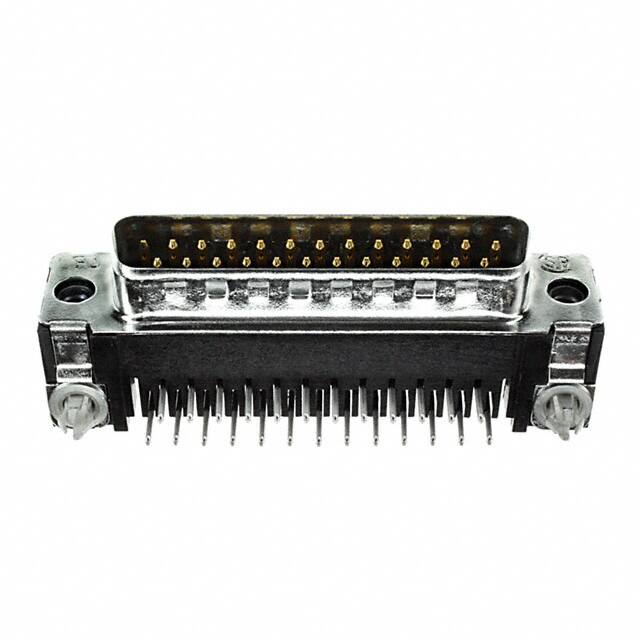

The TE Connectivity 5747842-4 is a D-Sub plug connector with 25 male pin positions arranged in 2 rows. It features a right angle through hole mounting style with solder termination for secure PCB attachment. The contacts are gold plated for reliable signal transmission, and the steel shell is tin plated for durability. This connector includes board lock, ground strap, and grounding indents for enhanced mechanical stability and EMI protection. The insulator is rated UL94 V-0 for flammability resistance. With a current rating of 6A per contact, it is suitable for signal-level interconnections in industrial and commercial electronic systems. The backset spacing is 8.08 mm, and the flange feature uses a 4-40 threaded housing/shell for mating hardware.
Plug, Male Pins; D-Sub style.
25 positions arranged in 2 rows.
Through Hole, Right Angle mounting with Solder termination.
6A per contact.
UL94 V-0.
Gold.
Steel, Tin Plated.
