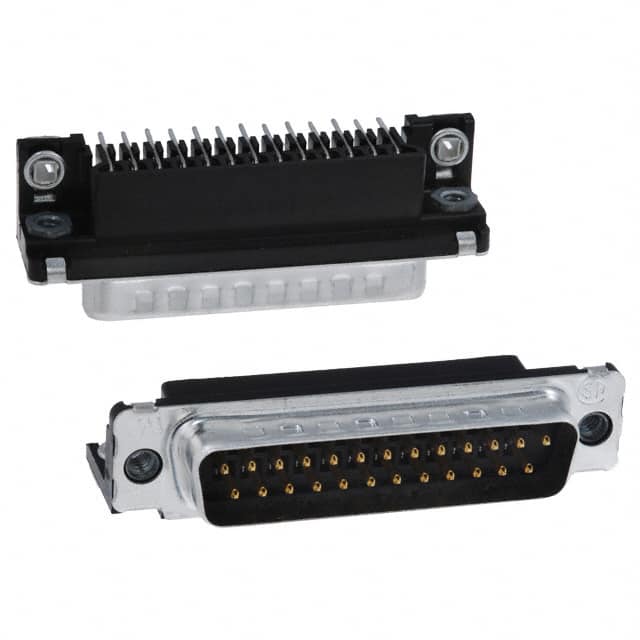

The TE Connectivity 5747842-3 is a D-Sub plug connector assembly designed for reliable signal connections. This connector features 25 male pin positions arranged in 2 rows, with a DB-25 shell size (3, DB, B) layout.
The connector is configured for through hole, right angle mounting with solder termination, making it suitable for PCB applications where space constraints require a right angle orientation. The contacts are signal type with a gold flash finish, and the shell is constructed from steel with a tin plated finish. It includes features such as a board lock, ground strap, and grounding indents for secure attachment and improved grounding.
The connector is rated for a current of 6 A and the insulator material has a UL94 V-0 flammability rating. The backset spacing is 0.318 inches (8.08 mm).
| Qty | Low | High |
|---|---|---|
| 1+ | $7.44 | $7.44 |
| 10+ | $6.19 | $6.19 |
| 25+ | $5.78 | $5.78 |
| 50+ | $5.15 | $5.15 |
| 100+ | $4.95 | $4.95 |
| 260+ | $4.16 | $4.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5747842-3 is a D-Sub plug connector with male pins.
The 5747842-3 has 25 positions arranged in 2 rows.
The mounting type is through hole, right angle with solder termination.
The current rating is 6 A.
The shell size is 3 (DB, B).
