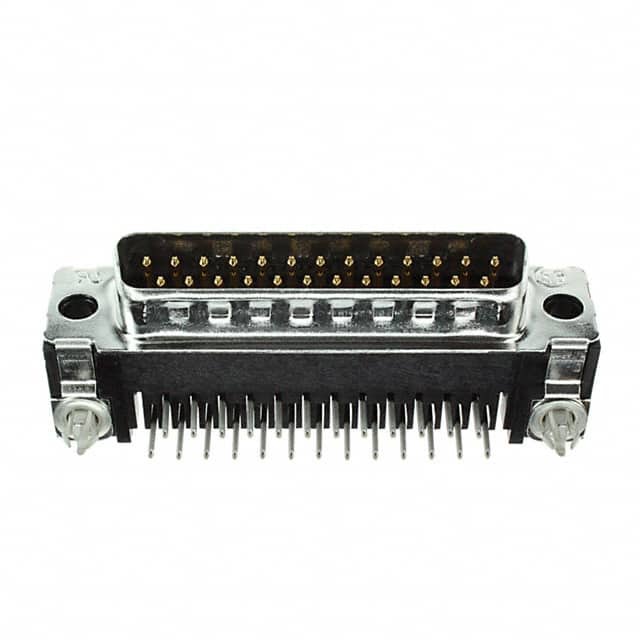

The TE Connectivity 5747842-2 is a D-Sub connector plug featuring 25 male pins arranged in 2 rows. It is designed for through hole mounting with a right angle orientation and solder termination, making it suitable for compact PCB layouts. The contacts are finished with gold for reliable signal integrity, while the steel shell is tin plated for durability. The connector includes a housing/shell (unthreaded) flange feature and a backset spacing of 8.08 mm (0.318 inches).
Rated for 6 A continuous current, this connector is well-suited for signal applications. It incorporates board lock, ground strap, and grounding indent features to enhance mechanical retention and EMI performance. The insulator material has a UL94 V-0 flammability rating, ensuring fire safety compliance. The shell size is 3 (DB, B), which is standard for 25-position D-Sub connectors.
Typical applications include data communication interfaces, industrial control systems, and peripheral connections where a reliable, multi-pin plug is required. The right angle design allows for low-profile mounting on PCBs, saving space in dense assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.03 | $11.03 |
| 10+ | $9.38 | $9.38 |
| 25+ | $8.79 | $8.79 |
| 65+ | $8.22 | $8.22 |
| 130+ | $7.82 | $7.82 |
| 260+ | $7.45 | $7.45 |
| 520+ | $7.09 | $7.09 |
| 1,040+ | $6.76 | $6.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
25 positions.
6 A.
Through hole, right angle.
Gold.
Steel, tin plated.
Board lock, ground strap, grounding indents.
UL94 V-0.
