| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Industrial Grade | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

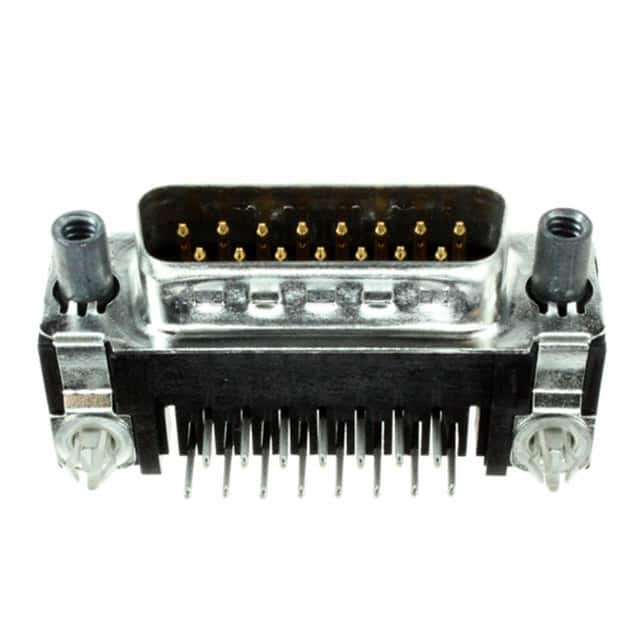

The TE Connectivity 5747841-6 is a D-Sub plug connector with 15 male pins arranged in 2 rows. It features a right-angle through-hole mounting style with solder termination. The connector is rated for 6A current per contact and has gold-plated signal contacts. The shell is steel with tin plating, and the flange includes female screwlocks (4-40) on the mating side. Additional features include board lock, ground strap, and grounding indents. The insulator material has a flammability rating of UL94 V-0. The backset spacing is 8.08 mm.
15 positions.
6 A per contact.
Through hole, right angle.
Gold.
Steel, tin plated.
Board lock, ground strap, grounding indents.
UL94 V-0.
