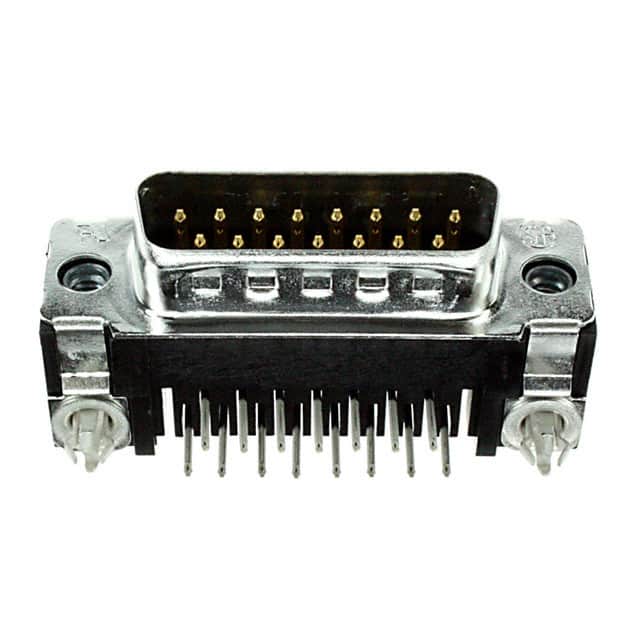

The TE Connectivity AMPLIMITE HD-20 5747841-4 is a 15-position D-Sub plug connector designed for reliable signal interconnections. It features a right-angle through-hole mounting style with solder termination, making it suitable for PCB applications where space is constrained. The connector has a steel, tin-plated shell and a UL94 V-0 rated thermoplastic housing. Contacts are brass with duplex plating: gold flash on the mating end and tin on the termination end, with nickel underplating. The current rating is 6 A per contact. Additional features include board locks, a ground strap, and grounding indents for improved EMI performance. The backset spacing is 0.318 inches (8.08 mm). This connector is part of the AMPLIMITE HD-20 series and is RoHS compliant.
Plug, Male Pins; D-Sub style.
15 positions arranged in 2 rows.
6 A per contact.
Through Hole, Right Angle with solder termination.
Gold on the mating end, tin on the termination end, with nickel underplating.
Steel, tin plated.
UL94 V-0.
