| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,144 pcs
|
1144 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

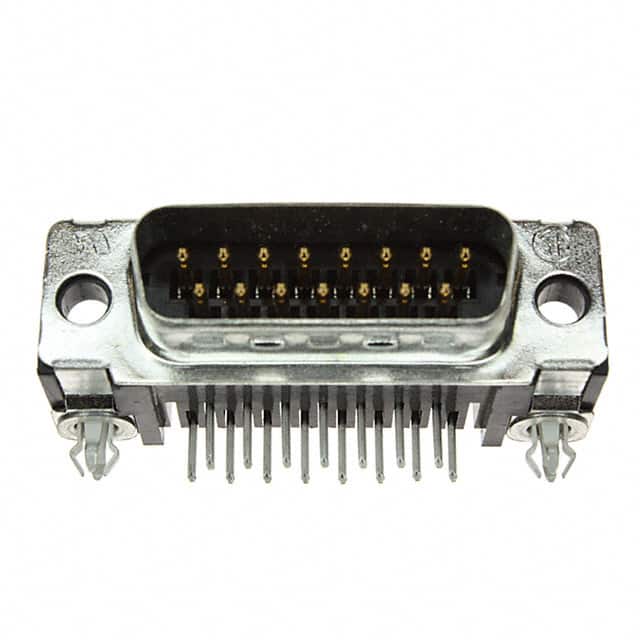

The TE Connectivity 5747841-2 is a D-Sub plug connector with 15 male pins arranged in 2 rows. It features a through hole, right angle mounting style for compact PCB layouts. The connector uses solder termination and has gold-plated contacts to ensure reliable signal integrity. The shell is made of steel with tin plating, and includes board locks, ground strap, and grounding indents for secure attachment and EMI shielding. The backset spacing is 0.318 inches (8.08 mm). The connector is rated for 6A current and the insulator material has a UL94 V-0 flammability rating. It is part of the D-Sub connector family, widely used in data and industrial applications.
15 positions in 2 rows.
6 A.
Through hole, right angle.
Gold.
Steel, tin plated.
UL94 V-0.
