| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,300 pcs
|
1300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
282 pcs
|
282 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Industrial Grade | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

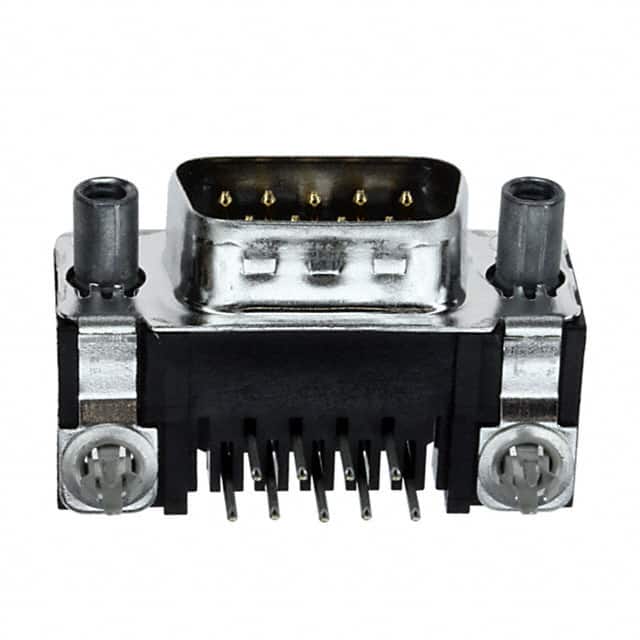

The TE Connectivity 5747840-6 is a 9-position D-Sub plug connector with male pins, designed for through-hole right angle mounting. It features solder termination and gold-plated contacts for reliable signal connections. The connector has a steel shell with tin plating and includes board lock, ground strap, and grounding indents for secure attachment and EMI protection. The backset spacing is 0.318 inches (8.08mm).
This connector is rated for 6A current and is housed in a UL94 V-0 rated material. It is part of the D-Sub connector family with shell size 1 (DE, E) and includes a mating side female screwlock (4-40) flange feature. The connector is suitable for applications requiring a robust and shielded interface for signal transmission.
Plug, Male Pins; D-Sub
9 positions in 2 rows
Through Hole, Right Angle
6A
Gold
Steel, Tin Plated
UL94 V-0
