| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,040 pcs
|
1040 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

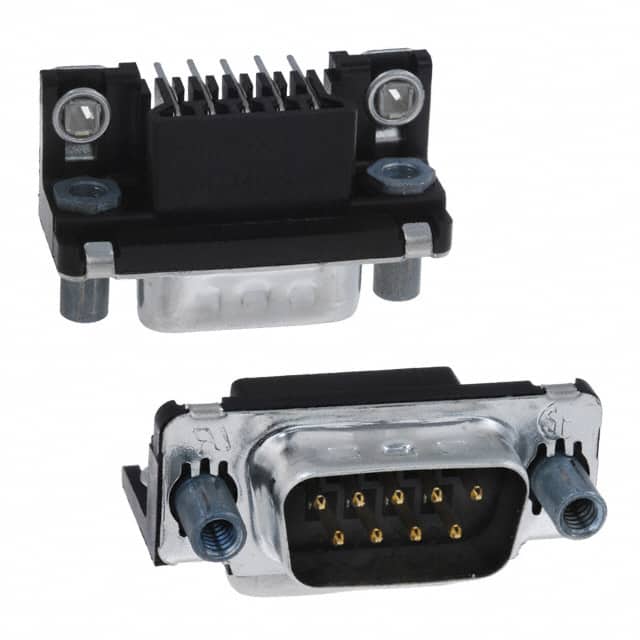

The TE Connectivity 5747840-5 is a 9-position D-Sub plug with male pins arranged in 2 rows. It features a through hole, right angle mounting style with solder termination. The connector uses a shell size DE (E) and includes a flange feature with mating side female screwlock (4-40) for secure panel attachment. The shell is constructed of steel with tin plating, and the contacts have a gold finish (flash thickness) for reliable signal transmission. The current rating is 6A per contact. Additional features include a board lock, ground strap, and grounding indents to enhance mechanical stability and grounding. The insulator material has a flammability rating of UL94 V-0. The backset spacing is 0.318 inches (8.08 mm). This connector is suitable for signal interface applications requiring a compact and rugged design.
9 positions.
6A.
Through Hole, Right Angle.
Gold.
Steel, Tin Plated.
Board Lock, Ground Strap, Grounding Indents.
UL94 V-0.
