| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,565 pcs
|
6565 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
650 pcs
|
650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
114 pcs
|
114 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

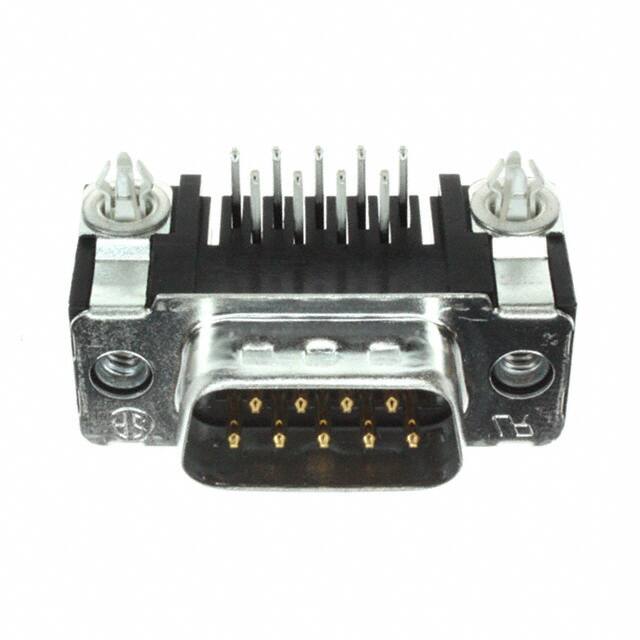

The TE Connectivity 5747840-4 is a 9-position D-Sub plug connector with male pins arranged in 2 rows. It utilizes a right-angle through-hole mounting style with solder termination, suitable for permanent PCB attachment.
This connector features gold-plated contacts for reliable signal transmission and a steel shell with tin plating for durability and EMI shielding. The shell size is DE-9 (E) with a housing/shell flange feature using 4-40 threads for secure mating.
Additional design elements include a board lock, ground strap, and grounding indents to enhance mechanical stability and grounding performance. The insulator is rated UL94 V-0 for flammability resistance. The backset spacing is 0.318 inches (8.08 mm). Current rating is 6 A nominal.
D-Sub plug with male pins.
9 positions.
Through hole, right angle.
6 A nominal.
UL94 V-0.
Board lock, ground strap, and grounding indents.
