| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

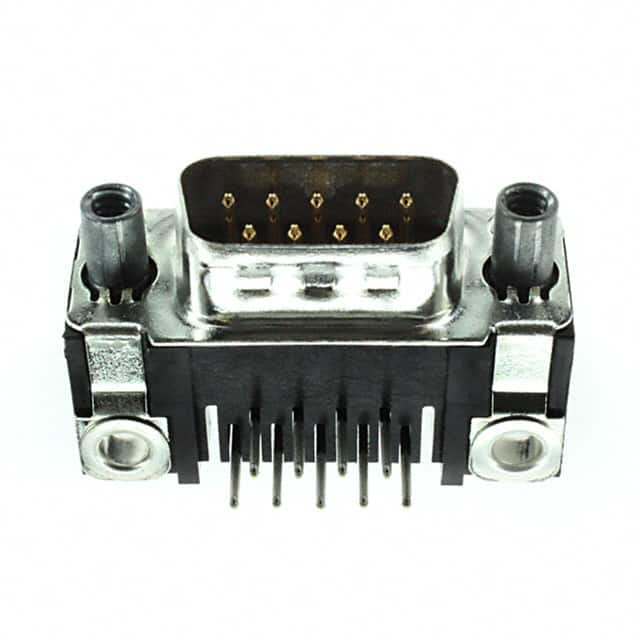

The TE Connectivity 5747250-6 is a D-Sub plug connector with 9 male pins arranged in 2 rows. It features a right angle through hole mounting style with solder termination, making it suitable for compact PCB layouts where space is limited. The contacts are gold plated for reliable signal transmission and corrosion resistance. The connector is rated for 6A current and has a steel shell with tin plating for durability. It includes a flange with female screwlock (4-40) on the mating side for secure connection. Additional features include a ground strap and grounding indents to improve EMI performance. The insulator material has a UL94 V-0 flammability rating, ensuring safety in various applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.26 | $5.26 |
| 10+ | $4.67 | $4.67 |
| 25+ | $4.48 | $4.48 |
| 50+ | $4.37 | $4.37 |
| 100+ | $4.19 | $4.19 |
| 260+ | $3.95 | $3.95 |
| 520+ | $3.80 | $3.80 |
| 1,040+ | $3.72 | $3.72 |
| 2,600+ | $3.38 | $3.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
6 A.
Through Hole, Right Angle.
Gold.
Steel, Tin Plated.
1 (DE, E).
UL94 V-0.
