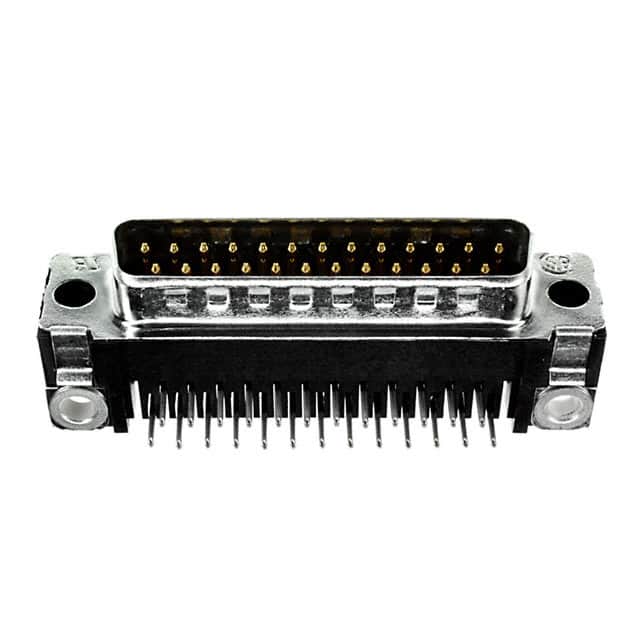

5747238-2 This TE Connectivity 5747238-2 is a 25-position D-Sub plug with male pins, designed for right-angle through-hole mounting with solder termination. It features gold-plated contacts and a current rating of 6A.
Mfr Part #:

5747238-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
This TE Connectivity 5747238-2 is a 25-position D-Sub plug with male pins, designed for right-angle through-hole mounting with solder termination. It features gold-plated contacts and a current rating of 6A.
✓ Total Stock: 70 pcs

5747238-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
70 pcs
On Request
70 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5747238-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Backset Spacing
Connector Style
Connector System
Connector Type
Contact Base Material
Contact Finish
Contact Type
Current Rating (Amps)
Features
Flange Feature
Housing Color
Housing Material
Material Flammability Rating
Mounting Hole Diameter
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
PCB Mount Retention
Shell Material, Finish
Shell Size, Connector Layout
Termination
Termination Post Length
UL Flammability Rating
View Similar Products (0)

5747238-2 Description

Short technical summary and product information.

The 5747238-2 from TE Connectivity is a 25-position D-Sub plug assembly from the AMPLIMITE series, designed for board-to-board applications. It features 2 rows with a 2.77mm contact pitch and 2.84mm row spacing. The right-angle PCB mount with through-hole solder termination allows space-efficient design. Shell size is 3 (DB, B) with a steel, tin-plated shell. The housing is made of UL94 V-0 rated nylon/polyester in black. Contacts have gold plating on the mating area, nickel underplating, and tin on the termination area for reliable solderability. Each contact is rated at 6A maximum. Operating temperature range is -55°C to 105°C. Features include grounding straps and grounding indents for EMI protection. Packaged in trays of 65 units.

5747238-2 Quick Information

Product Type: D-Sub Connector Plug Assembly
Series: AMPLIMITE
Canonical Name: D-Sub Connector Plug, 25 Position, Right Angle, Solder
Subcategory: Plug, Male Pins

5747238-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5747238-2 Features

  • 25-position D-Sub plug with male pins.
  • Right-angle through-hole mounting design.
  • Gold-plated contacts for reliable connection.
  • Rated for 6A maximum current per contact.
  • UL94 V-0 rated housing material.

5747238-2 Applications

  • Suitable for board-to-board signal connections.
  • Common in industrial control and computing equipment.
  • Used in data communication interfaces.
  • Ideal for space-constrained PCB layouts.

5747238-2 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

25 positions.

What is the contact pitch?

2.77 mm.

What is the current rating?

6 A per contact.

What is the mounting type?

Through hole, right angle.

What is the connector shell size?

Shell size 3 (DB, B).

What is the operating temperature range?

-55°C to 105°C.

What is the contact plating material?

Gold on mating area, tin on termination area.
