| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 1041 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| ELV | |
| Features | |
| Flange Feature | |
| Halogen Content | |
| Halogen Free | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Solder Process Capability | |
| Termination | |
| Termination Style |

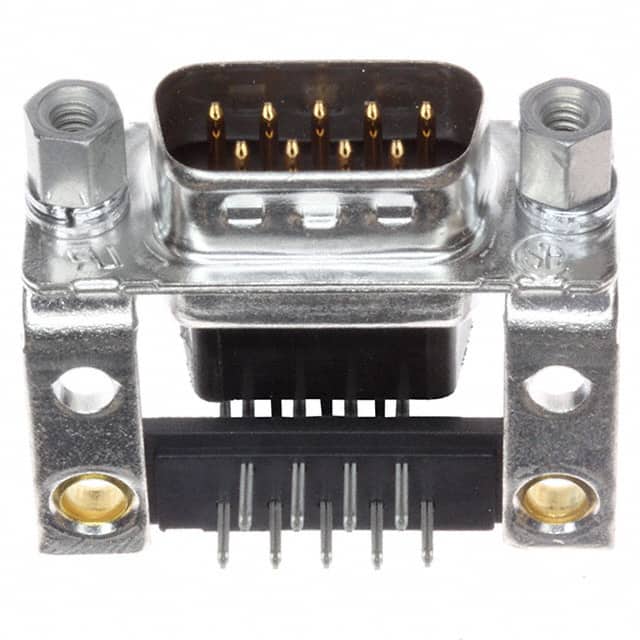

The TE Connectivity 5747197-4 is a D-Sub plug connector designed for signal applications. It has 9 positions arranged in 2 rows with a shell size of DE-1 (E). The connector features male pins with gold contact finish for reliable signal transmission. The mounting style is through-hole, right angle, with solder termination. The steel shell is tin plated and includes grounding indents and mounting brackets for secure installation. The flange feature includes mating side female screwlocks (4-40). This connector is rated for 6A current and is wave solder capable to 265°C. The material flammability rating is UL94 V-0. Both RoHS and ELV compliance are met with exemptions for lead content, and REACH compliance indicates SVHC lead above threshold. The halogen content is not low halogen (contains Br or Cl >900 ppm).
9 positions.
6A.
Through hole, right angle.
Gold.
Yes, with exemptions for lead in steel (6(a)-I).
Steel, tin plated.
UL94 V-0.
