| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
747 pcs
|
747 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| UL |

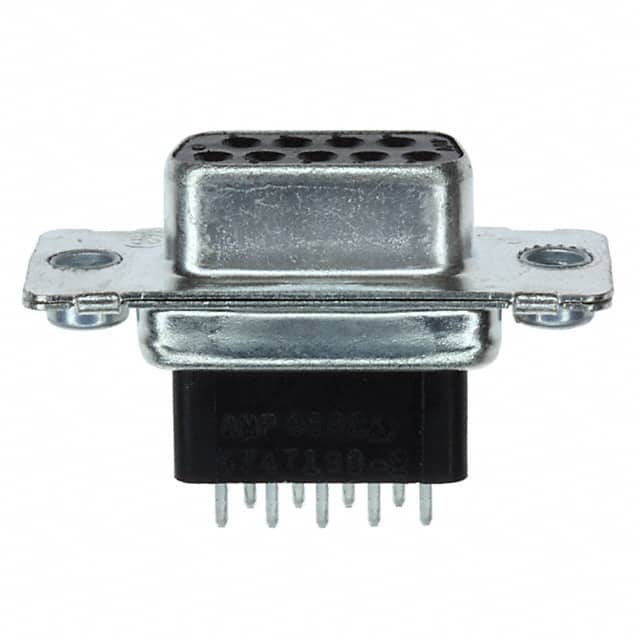

The TE Connectivity 5747190-2 is a D-Sub receptacle connector designed for reliable signal connections in electronic systems. It features 9 positions arranged in 2 rows, with female socket contacts that accept male pins. The connector uses through hole mounting and solder termination for secure attachment to printed circuit boards.
Key specifications include a current rating of 6A per contact, gold flash contact finish for corrosion resistance, and a steel shell with tin plating for durability. The shell size is 1 (DE, E) with a board side 4-40 flange feature for secure mating. The insulator material is rated UL94 V-0 for flammability resistance.
This connector is part of TE Connectivity's Amplimite HD-20 family, suitable for applications requiring a compact and robust D-Sub interface. The through hole design provides strong mechanical retention on the PCB, making it appropriate for industrial, telecommunications, and data processing equipment.
The connector has 9 positions arranged in 2 rows.
Through hole mounting with solder termination.
The current rating is 6A per contact.
Shell size is 1 (DE, E) with a board side 4-40 flange feature.
The material flammability rating is UL94 V-0.
