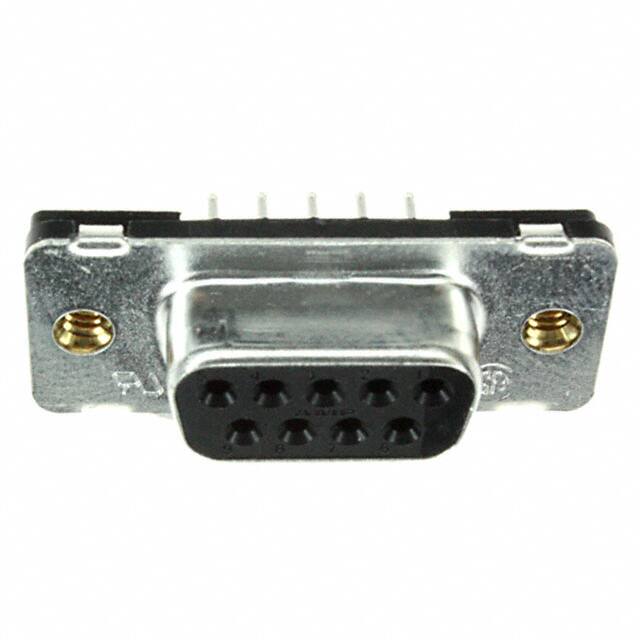

The TE Connectivity 5747150-8 is a 9-position D-Sub receptacle connector designed for reliable signal interconnects. It features female socket contacts arranged in 2 rows within a shell size 1 (DE, E) housing. The connector has a steel shell with a tin plating and includes a housing/shell flange feature with 4-40 threaded inserts for secure mating. The contacts are signal type and are terminated via through hole solder connections, making it suitable for vertical mounting on a printed circuit board.
This connector is rated for 6A per contact and utilizes gold contact plating with a thickness of 30.0 µin (0.76 µm) to ensure low contact resistance and high durability over repeated mating cycles. The insulator material has a UL94 V-0 flammability rating for safety. The part is wave solder capable up to 265°C, compatible with standard soldering processes.
The 5747150-8 is RoHS compliant with exemption 6(c) for lead in copper alloy, ELV compliant with exemption 3, and China RoHS 2 restricted materials above threshold. It contains halogen above low-halogen thresholds (Br or Cl > 900 ppm). REACH compliance indicates SVHC lead content at 3.7% in the component part.
Connector type is Receptacle, Female Sockets, D-Sub style, with 9 positions arranged in 2 rows. Shell size is 1 (DE, E).
Through hole mounting with solder termination.
6A per contact.
Gold contact finish with a thickness of 30.0µin (0.76µm).
UL94 V-0.
RoHS compliant with exemption 6(c), ELV compliant with exemption 3, China RoHS restricted materials above threshold, and REACH SVHC above threshold (Pb 3.7%). Halogen content is not low halogen (Br or Cl > 900 ppm).
