5747099-1 D-Sub backshell with 15 positions, 180° cable exit, and shielding. Features thermoplastic construction with nickel over copper plating and mating screws 4-40.
Mfr Part #:

5747099-1

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
D-Sub backshell with 15 positions, 180° cable exit, and shielding. Features thermoplastic construction with nickel over copper plating and mating screws 4-40.
✓ Total Stock: 328 pcs

5747099-1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
304 pcs
On Request
304 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
24 pcs
On Request
24 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5747099-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
SVHC Present
Shielding
View Similar Products (0)

5747099-1 Description

Short technical summary and product information.

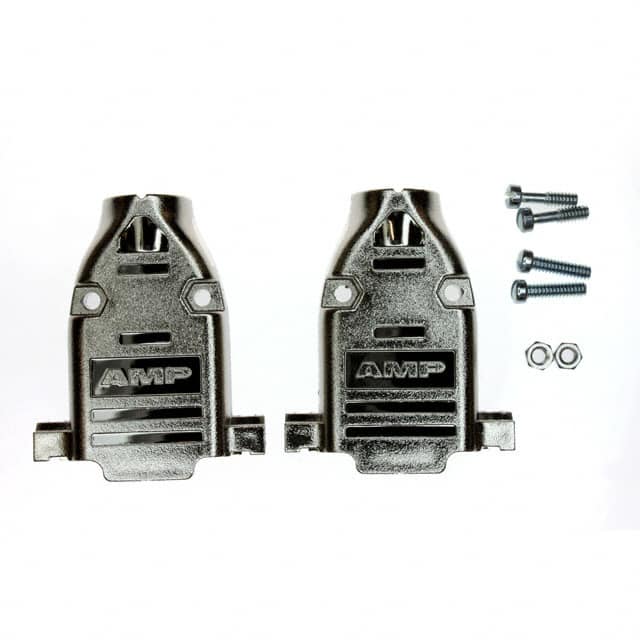

The TE Connectivity 5747099-1 is a two-piece D-Sub backshell designed for 15-position connectors. It features a 180° cable exit angle and is fully shielded to provide EMI/RFI protection. The backshell is constructed from thermoplastic with nickel over copper plating, giving it a silver appearance. It includes assembly hardware and strain relief, and comes with mating screws 4-40 for secure attachment. This backshell is suitable for use with round cables. It is RoHS3 compliant and has an MSL of 1 (unlimited).

5747099-1 Quick Information

Product Type: D-Sub Backshell
Canonical Name: D-Sub Backshell, 15 Position, 180° Cable Exit, Shielded
Subcategory: D-Sub Connector Backshells

5747099-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5747099-1 Features

  • Two-piece backshell design for 15-position D-Sub connectors.
  • 180° cable exit angle for straight cable routing.
  • Shielded construction for EMI/RFI protection.
  • Thermoplastic body with nickel over copper plating.
  • Includes strain relief and mating screws 4-40.

5747099-1 Applications

  • Used in data communication equipment.
  • Suitable for industrial control systems.
  • Ideal for computer peripheral connections.
  • Applied in test and measurement devices.

5747099-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

15 positions.

What is the cable exit angle?

180°.

Is this backshell shielded?

Yes, it is shielded.

What material is the backshell made of?

Thermoplastic.

What plating does it have?

Nickel over copper.

What hardware is included?

Assembly hardware and strain relief, with mating screws 4-40.

What is the color?

Silver.
