| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Flange Feature | |
| Halogen Free | |
| Lead Style | |
| Material Flammability Rating | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

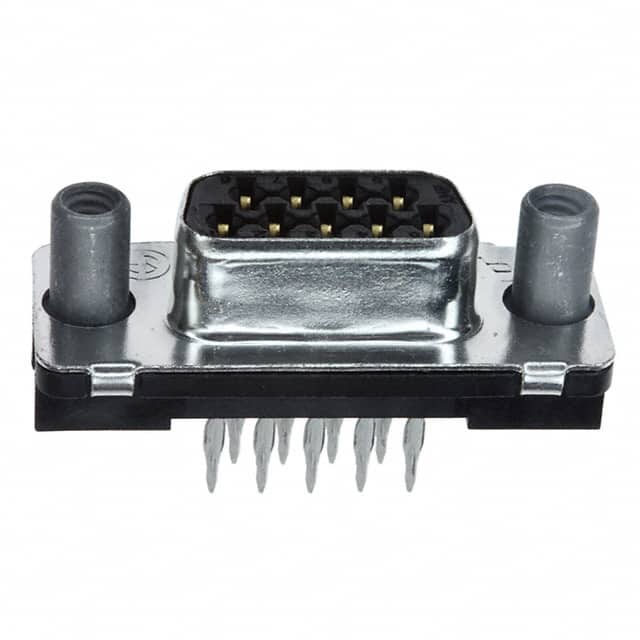

The TE Connectivity 5747091-2 is a 9-position D-Sub receptacle designed for reliable signal connections in dense PCB assemblies. It features a steel shell with tin plating and a mating side female screwlock (4-40) for secure cable attachment.
The receptacle uses a 2-row layout with 9 female socket contacts, each with a gold finish for high signal integrity and corrosion resistance. The through hole press-fit termination enables a solderless, gas-tight connection to the PCB, reducing assembly time and thermal stress.
Packaged in a UL94 V-0 rated insulating material, the connector meets flammability safety requirements. RoHS compliant and free of REACH SVHCs as per the latest ECHA candidate list, it is suitable for lead-free manufacturing processes.
Ideal for industrial control, data communications, and instrumentation applications where reliable multi-pin connections are required. The press-fit design is well suited for high-volume PCB assembly.
9 positions arranged in 2 rows.
Press-fit through hole termination.
Female socket contacts with gold finish.
Shell size 1 (DE, E).
Yes, it is compliant with EU RoHS Directive 2011/65/EU.
UL94 V-0.
