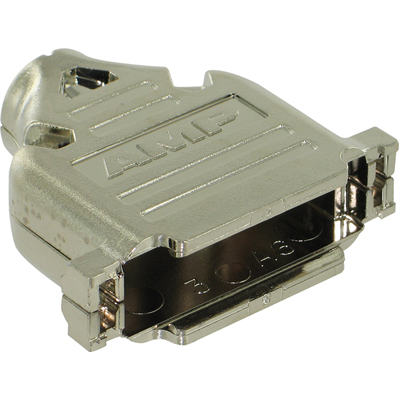

5745833-9 TE Connectivity 5745833-9 is a two-piece D-Sub backshell with 25 positions, shielded construction, and 180° cable exit. It features nickel over copper plating and thermoplastic material.
Mfr Part #:

5745833-9

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5745833-9 is a two-piece D-Sub backshell with 25 positions, shielded construction, and 180° cable exit. It features nickel over copper plating and thermoplastic material.
✓ Total Stock: 825 pcs
$ Price Range: $8.14 - $10.73

5745833-9 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
825 pcs
On Request
825 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5745833-9 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
Shielding
Tape & Reel
View Similar Products (0)

5745833-9 Description

Short technical summary and product information.

The TE Connectivity 5745833-9 is a two-piece D-Sub backshell designed for 25-position D-Sub connectors. It provides a shielded enclosure with a 180° cable exit, suitable for round cable types. The backshell includes assembly hardware and mating screws 4-40 for secure connection.



Constructed from thermoplastic material with nickel over copper plating, this backshell offers durability and EMI shielding. The silver color finish provides a professional appearance. It is designed for use in D-Sub connector assemblies where cable management and shielding are required.



The product is RoHS3 compliant and has an MSL of 1 (unlimited). It is recommended for applications requiring reliable signal integrity and mechanical strain relief. The backshell is a direct replacement for standard 25-pin D-Sub backshells.

5745833-9 Quick Information

Product Type: D-Sub Backshell
Series: 5745833
Canonical Name: TE Connectivity 5745833-9 D-Sub Backshell, 25 Position, Shielded, 180° Exit
Subcategory: Backshells, Hoods

5745833-9 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

5745833-9 Estimated Pricing

Qty Low High
1+ $10.73 $10.73
10+ $9.12 $9.12
25+ $8.55 $8.55
50+ $8.14 $8.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

5745833-9 Features

  • 25 position D-Sub connector backshell.
  • Shielded design for EMI protection.
  • Nickel over copper plating finish.
  • 180° cable exit for straight routing.
  • Two-piece construction with assembly hardware.

5745833-9 Applications

  • Used for cable termination in D-Sub connectors.
  • Ideal for industrial and communication equipment.

5745833-9 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the backshell support?

The backshell supports 25 positions.

Is the backshell shielded?

Yes, it is shielded.

What is the cable exit angle?

The cable exit is 180°.

What material is the backshell made of?

The backshell is made of thermoplastic.

What is the plating material?

The plating is nickel over copper.

Does the backshell include mounting hardware?

Yes, it includes assembly hardware and mating screws 4-40.

What type of accessory is this?

It is a two-piece backshell.
