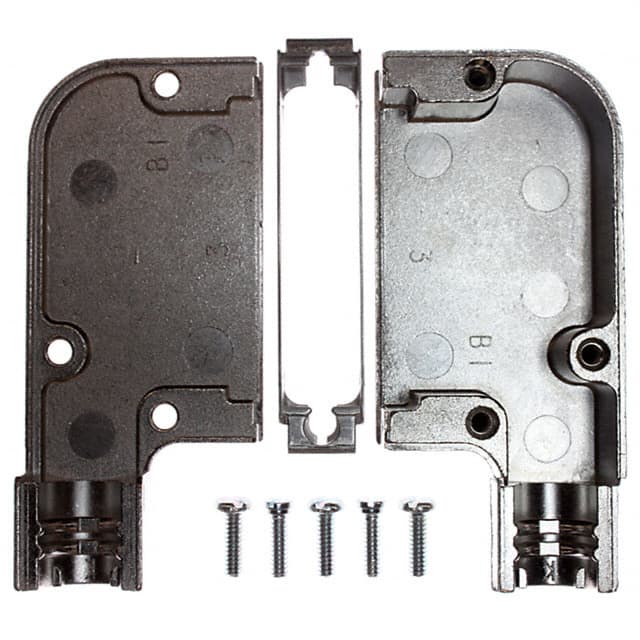

5745653-3 TE Connectivity 5745653-3 is a 25 position, 90° cable exit, shielded two piece backshell for round cable. Features slide lock and assembly hardware.
Mfr Part #:

5745653-3

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5745653-3 is a 25 position, 90° cable exit, shielded two piece backshell for round cable. Features slide lock and assembly hardware.
✓ Total Stock: 499 pcs

5745653-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
499 pcs
On Request
499 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5745653-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Halogen Free
Hardware
Material
Number of Positions
Plating
Shielding
View Similar Products (0)

5745653-3 Description

Short technical summary and product information.

The TE Connectivity 5745653-3 is a two piece backshell designed for D-Sub connectors, accommodating 25 positions with a 90° cable exit for round cable. Constructed from zinc alloy with nickel over copper plating, this backshell provides effective shielding and durability. The silver-colored assembly includes slide lock hardware for secure cable retention.



This backshell is suitable for applications requiring electromagnetic interference (EMI) protection due to its shielded design. The 90° cable exit allows for low-profile cable routing in tight spaces. The assembly hardware ensures straightforward installation.



Compliant with EU RoHS with exemptions (lead in steel) and EU ELV, the 5745653-3 is also low halogen. Note that it contains lead above the REACH SVHC threshold (0.35% in component part) and is China RoHS restricted.

5745653-3 Quick Information

Product Type: D-Sub Backshell
Series: 5745653
Canonical Name: TE Connectivity 5745653-3 D-Sub Backshell, 25 Position, 90° Cable Exit, Shielded
Subcategory: Two Piece Backshell

5745653-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Contains SVHC (Pb 0.35%)

5745653-3 Features

  • 25 position D-Sub backshell.
  • 90° cable exit for round cable.
  • Shielded zinc alloy construction.
  • Nickel over copper plating.
  • Slide lock and assembly hardware.

5745653-3 Applications

  • EMI shielding for D-Sub cable assemblies.
  • Low-profile cable routing in enclosures.
  • Industrial control and automation systems.
  • Data communication equipment.

5745653-3 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 5745653-3 backshell support?

25 positions.

What is the cable exit angle?

90 degrees.

Is the backshell shielded?

Yes, it is shielded.

What material is the backshell made of?

Metal, zinc alloy with nickel over copper plating.

What type of cable does it accommodate?

Round cable.

Does it include hardware?

Yes, assembly hardware and slide lock are included.
