| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | 21302 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

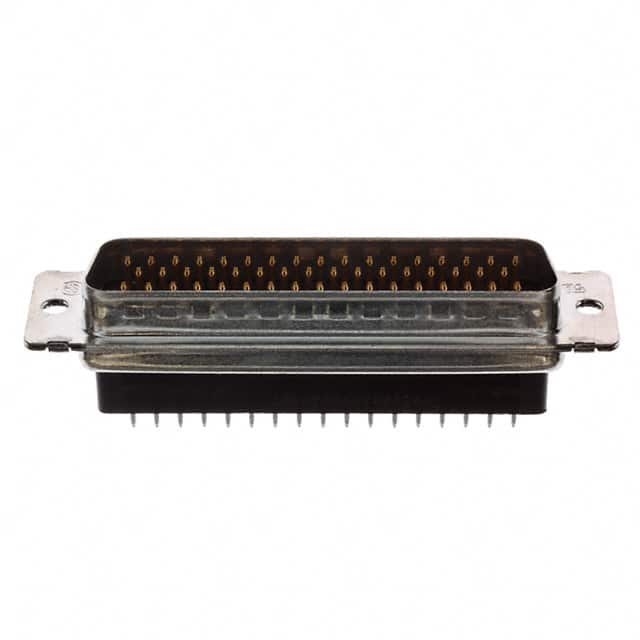

The TE Connectivity 5745414-1 is a D-Sub plug connector with male pins, designed for through-hole mounting with solder termination. It features 50 positions arranged in 3 rows, making it suitable for high-density signal connections in a variety of electronic systems.
The connector has a shell size of 5 (DD, D) with a steel, tin-plated shell and an unthreaded housing/shell flange feature. The contacts are gold-plated signal contacts rated for 6A current, providing reliable electrical performance. The connector includes grounding indents for improved grounding and shielding.
The insulator material has a UL94 V-0 flammability rating, ensuring fire safety compliance. The through-hole mounting with solder termination provides a robust mechanical connection suitable for permanent PCB installations.
This D-Sub connector is commonly used in applications requiring reliable multi-pin signal connections, such as industrial equipment, data communication systems, and test instrumentation.
| Qty | Low | High |
|---|---|---|
| 1+ | $36.02 | $36.02 |
| 8+ | $30.61 | $30.61 |
| 24+ | $28.69 | $28.69 |
| 56+ | $27.42 | $27.42 |
| 104+ | $26.50 | $26.50 |
| 256+ | $25.04 | $25.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 50 positions arranged in 3 rows.
The mounting type is through-hole with solder termination.
The contacts are rated for 6A current.
The contact finish is gold.
The shell is made of steel with tin plating.
The material flammability rating is UL94 V-0.
