| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Flange Feature | |
| Housing Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

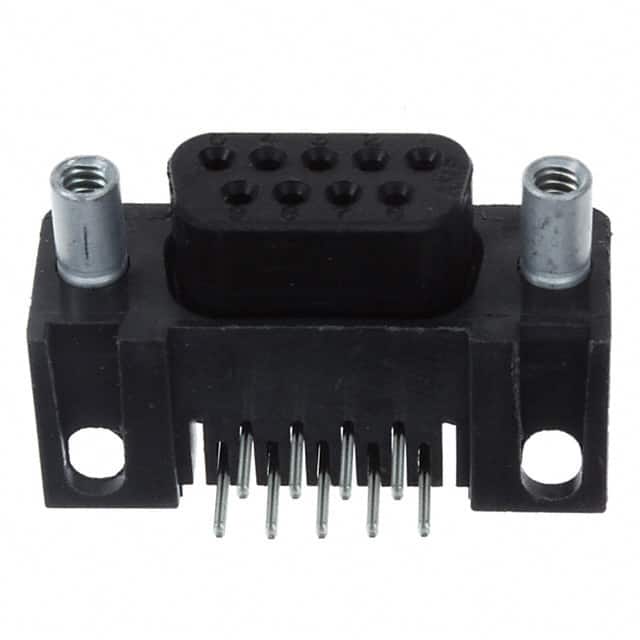

The TE Connectivity 5745395-2 is a 9-position D-Sub receptacle connector from the AMPLIMITE HD-20 series. It features a right-angle solder termination for through-hole mounting, making it suitable for compact PCB layouts where space is constrained. The connector uses phosphor bronze socket contacts with 0.76 µm gold plating on the mating end and tin on the termination end, with a nickel underplate for corrosion resistance. The housing is made of UL94 V-0 rated thermoplastic, ensuring flame retardancy. The shell size is DE (E), and the flange includes female screwlocks (4-40) on the mating side for secure cable attachment. This connector is rated for 6A per contact and is RoHS compliant.
The connector has 9 positions arranged in 2 rows.
Each contact is rated for 6A.
Through-hole, right angle solder termination.
Yes, the datasheet states all part numbers are RoHS compliant.
Gold plating with 0.76 µm thickness on the mating end, tin on termination end, with nickel underplate.
Shell size 1 (DE, E).
