| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

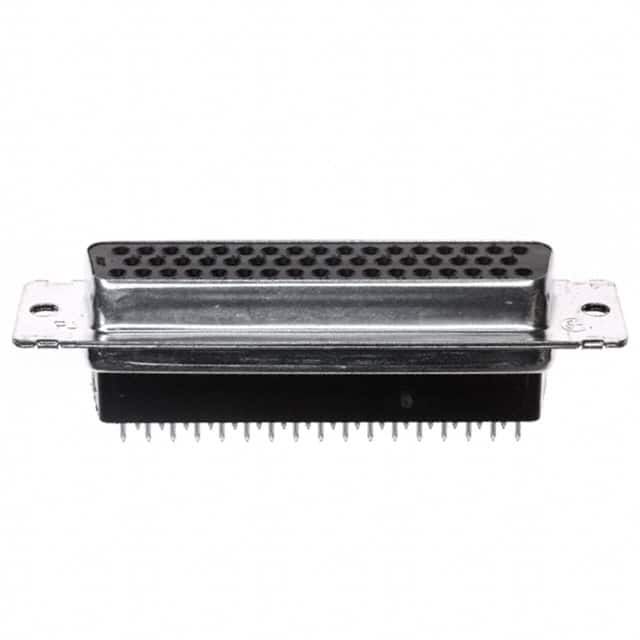

The TE Connectivity 5745191-1 is a D-Sub receptacle connector with 50 female socket positions arranged in 3 rows. It uses a through hole mounting style with solder termination. The shell size is 5 (DD, D), and the shell is constructed from steel with a tin-plated finish. Contacts are gold flash plated for reliable signal transmission. The connector is rated for 6A current and the insulator material has a UL94 V-0 flammability rating. The flange feature is housing/shell unthreaded. This connector is suitable for applications requiring high-density signal connections in a standard D-Sub form factor. Compliance: RoHS3 compliant, REACH unaffected, and MSL 1 (unlimited) — note these are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $28.32 | $28.32 |
| 8+ | $25.01 | $25.01 |
| 24+ | $23.85 | $23.85 |
| 56+ | $22.85 | $22.85 |
| 104+ | $22.26 | $22.26 |
| 504+ | $21.11 | $21.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
6A.
Through hole.
3 rows.
Gold flash.
Steel, tin plated.
UL94 V-0.
