5745174-5 TE Connectivity 5745174-5 is a 37-position D-Sub backshell with 180° cable exit, shielded construction, and nickel over copper plating. It features 4-40 mating screws and strain relief hardware.
Mfr Part #:

5745174-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5745174-5 is a 37-position D-Sub backshell with 180° cable exit, shielded construction, and nickel over copper plating. It features 4-40 mating screws and strain relief hardware.
✓ Total Stock: 3 pcs
$ Price Range: $13.13 - $20.83

5745174-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5745174-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Mounting Type
Number of Positions
Plating
Shielding
View Similar Products (0)

5745174-5 Description

Short technical summary and product information.

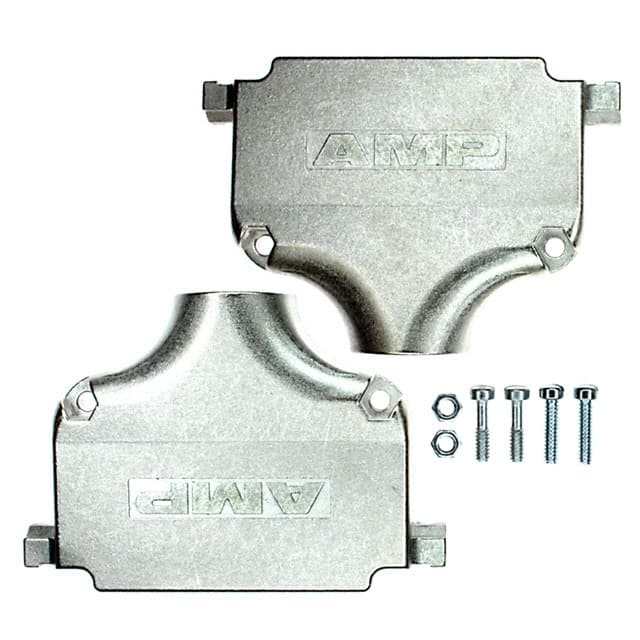

The TE Connectivity 5745174-5 is a two-piece D-Sub backshell designed for 37-position connectors. It features a 180° cable exit for round cable, and is fully shielded to provide EMI/RFI protection. The backshell is constructed from zinc alloy with nickel over copper plating, giving it a silver appearance and good corrosion resistance. This backshell includes assembly hardware and strain relief, and comes with 4-40 mating screws for secure attachment. The mounting type is free hanging, making it suitable for cable assembly applications.

5745174-5 Quick Information

Product Type: D-Sub Backshell
Series: 5745174
Canonical Name: TE Connectivity D-Sub Backshell, 37 Positions, 180° Cable Exit, Shielded, Zinc Alloy, Nickel Plating
Subcategory: Two Piece Backshell

5745174-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5745174-5 Estimated Pricing

Qty Low High
1+ $20.83 $20.83
10+ $17.94 $17.94
25+ $16.81 $16.81
50+ $16.01 $16.01
100+ $15.25 $15.25
250+ $14.29 $14.29
500+ $13.13 $13.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

5745174-5 Features

  • Two piece backshell design.
  • Shielded for EMI/RFI protection.
  • 37 positions with 180° cable exit.
  • Zinc alloy with nickel plating.
  • Includes 4-40 mating screws.

5745174-5 Applications

  • Ideal for D-Sub cable assemblies.
  • Provides EMI shielding in industrial environments.
  • Used in data communication equipment.
  • Suitable for free hanging cable applications.

5745174-5 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does this backshell support?

37 positions.

What is the mounting type?

Free hanging.

What is the cable exit angle?

180°.

Is this backshell shielded?

Yes, it is shielded.

What material is the backshell made of?

Zinc alloy with nickel over copper plating.

What hardware is included?

Assembly hardware, strain relief, and 4-40 mating screws.
