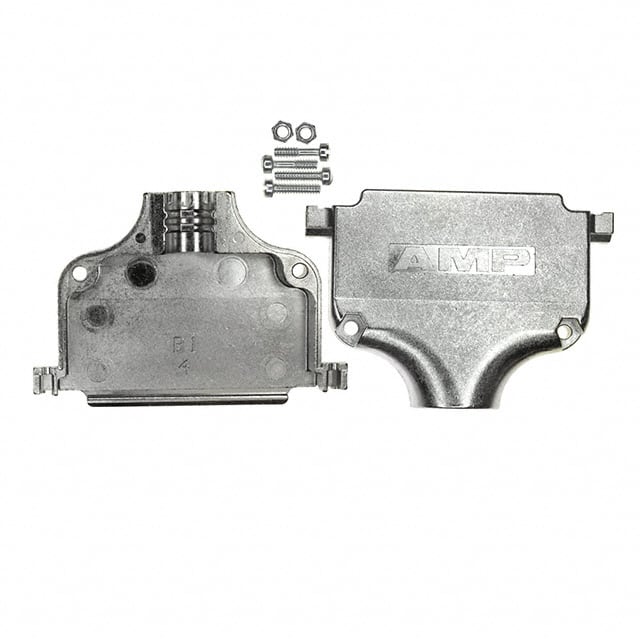

5745174-4 D-Sub backshell for 37-position connectors with 180° cable exit. Shielded metal construction with nickel over copper plating.
Mfr Part #:

5745174-4

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
D-Sub backshell for 37-position connectors with 180° cable exit. Shielded metal construction with nickel over copper plating.
✓ Total Stock: 1,270 pcs
$ Price Range: $8.74 - $10.99

5745174-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,270 pcs
On Request
1270 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5745174-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
SVHC Present
Shielding
Tape & Reel
View Similar Products (0)

5745174-4 Description

Short technical summary and product information.

The TE Connectivity 5745174-4 is a two-piece D-Sub backshell designed for 37-position connectors. It features a 180° cable exit and is fully shielded to reduce electromagnetic interference. Constructed from metal and zinc alloy with nickel over copper plating, it provides durability and corrosion resistance. The backshell includes assembly hardware and strain relief for secure cable management. Mating screws 4-40 are included for attachment to the connector. It is compatible with round cables. The part is RoHS3 compliant and has an MSL of 1 (unlimited).

5745174-4 Quick Information

Product Type: D-Sub Backshell
Series: 5745174
Canonical Name: D-Sub Backshell, 37 Position, 180° Cable Exit, Shielded, Two Piece, Silver
Subcategory: D-Sub, D-Shaped Connector Backshells, Hoods

5745174-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5745174-4 Estimated Pricing

Qty Low High
1+ $10.99 $10.99
10+ $10.40 $10.40
500+ $8.91 $8.91
1,000+ $8.74 $8.74

Estimated market price range - modelled values for guidance only, not live distributor offers.

5745174-4 Features

  • 37-position D-Sub backshell.
  • 180° cable exit for straight cable routing.
  • Shielded metal construction for EMI protection.
  • Nickel over copper plating for corrosion resistance.
  • Includes assembly hardware and strain relief.

5745174-4 Applications

  • Used in industrial control systems.
  • Suitable for data communication equipment.
  • Ideal for applications requiring EMI shielding.
  • Common in computer and peripheral connections.

5745174-4 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the backshell support?

37 positions.

What is the cable exit angle?

180°.

Is the backshell shielded?

Yes, it is shielded.

What material is the backshell made of?

Metal and zinc alloy.

What plating does the backshell have?

Nickel over copper.

What hardware is included?

Assembly hardware and strain relief, with mating screws 4-40.

What type of cable is compatible?

Round cable.
