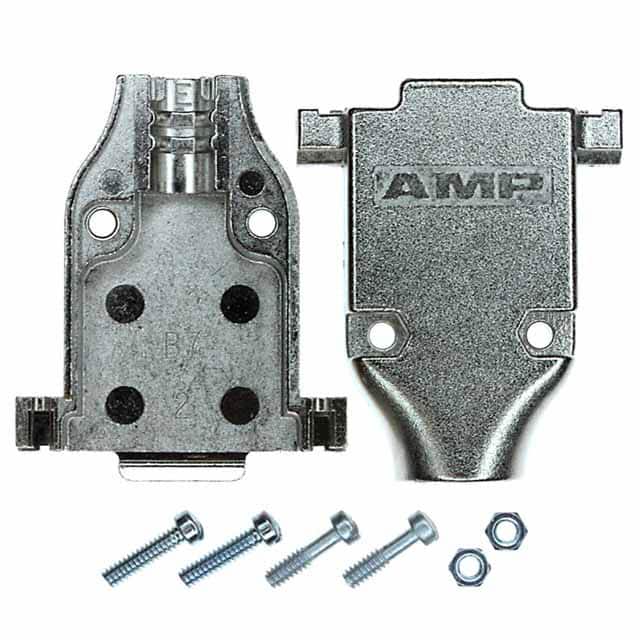

5745172-2 D-Sub backshell, 15 position, 180° cable exit, shielded. Metal zinc alloy with nickel over copper plating, includes mating screws and strain relief.
Mfr Part #:

5745172-2

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
D-Sub backshell, 15 position, 180° cable exit, shielded. Metal zinc alloy with nickel over copper plating, includes mating screws and strain relief.
✓ Total Stock: 211 pcs

5745172-2 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
61 pcs
On Request
61 pcs On Request 1 On Request On Request On Request On Request On Request
AA2DE ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5745172-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
SVHC Present
Shielding
View Similar Products (0)

5745172-2 Description

Short technical summary and product information.

The TE Connectivity 5745172-2 is a two-piece D-Sub backshell designed for 15-position connectors. It features 180° cable exit for round cables, shielding for EMI protection, and nickel over copper plating on a metal zinc alloy construction. Includes assembly hardware and strain relief. Mating screws 4-40 are provided. The silver color and shielded design make it suitable for industrial and data communication applications. The backshell mates with standard D-Sub connectors, providing mechanical support and strain relief. The nickel plating offers corrosion resistance, and the two-piece design allows easy assembly around the cable.

5745172-2 Quick Information

Product Type: D-Sub Backshell
Canonical Name: D-Sub Backshell, 15 Position, 180° Exit, Shielded, Two Piece
Subcategory: Shielded Backshell

5745172-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5745172-2 Features

  • Two-piece design for easy assembly.
  • Shielded for EMI protection.
  • Nickel over copper plating for corrosion resistance.
  • Includes 4-40 mating screws.
  • 180° cable exit for round cables.

5745172-2 Applications

  • Ideal for data communication cable assemblies.
  • Used in industrial control systems.
  • Suitable for computer peripheral connections.
  • Protects D-Sub connectors in harsh environments.

5745172-2 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the backshell support?

15 positions.

What material is the backshell made of?

Metal, zinc alloy.

What plating is applied?

Nickel over copper.

Is the backshell shielded?

Yes, shielded.

What is the cable exit angle?

180°.

What type of cable is it designed for?

Round cable.

What hardware is included?

Assembly hardware and strain relief.
