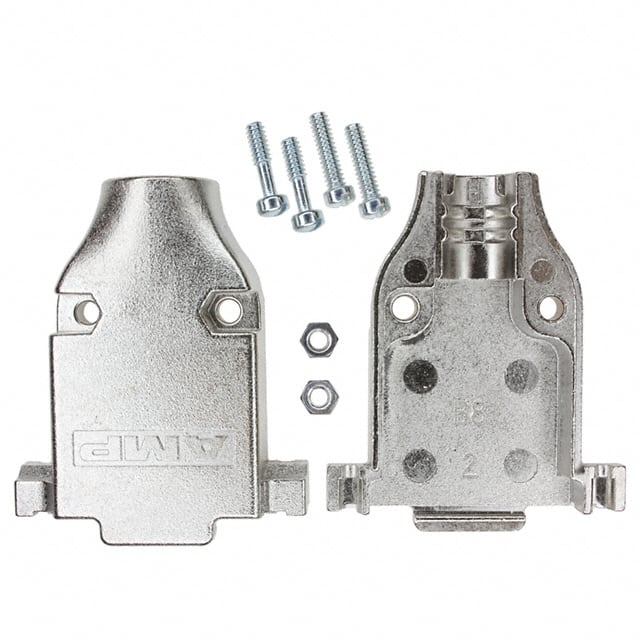

5745172-1 Two-piece backshell for D-sub connectors with 15 positions and 180° cable exit. Shielded with nickel over copper plating, includes mating screws and strain relief.
Mfr Part #:

5745172-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Two-piece backshell for D-sub connectors with 15 positions and 180° cable exit. Shielded with nickel over copper plating, includes mating screws and strain relief.
✓ Total Stock: 200 pcs

5745172-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5745172-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
SVHC Present
Shielding
View Similar Products (0)

5745172-1 Description

Short technical summary and product information.

This TE Connectivity 5745172-1 is a two-piece backshell accessory designed for D-sub connectors. It accommodates 15 positions and features a 180° cable exit for round cables. The backshell is shielded and constructed from zinc alloy with nickel over copper plating, providing EMI protection and durability.



Assembly hardware is included, consisting of strain relief and 4-40 mating screws for secure attachment. The silver-colored finish offers a clean appearance. This backshell is intended for use in environments requiring reliable cable termination and shielding.



Typical applications include industrial automation, data communication interfaces (RS-232/RS-422), test and measurement equipment, and computer peripheral connections where D-sub connectors are employed.

5745172-1 Quick Information

Product Type: Backshell
Canonical Name: D-Sub Backshell, 15 Position, 180° Cable Exit, Shielded
Subcategory: D-Sub Backshells and Hoods

5745172-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5745172-1 Features

  • Two-piece shielded backshell for D-sub connectors.
  • Accommodates 15 positions with 180° cable exit.
  • Zinc alloy body with nickel over copper plating.
  • Includes strain relief and 4-40 mating screws.
  • Designed for use with round cable types.

5745172-1 Applications

  • Used in industrial automation equipment connections.
  • Suitable for data communication interfaces (RS-232/RS-422).
  • Ideal for applications requiring EMI shielding.
  • Common in test and measurement instrumentation.
  • Can be used in computer peripheral connections.

5745172-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the position count of this backshell?

15 positions.

What cable exit angle does it support?

180° cable exit.

Is this backshell shielded?

Yes, it is shielded.

What materials are used in this backshell?

Metal, zinc alloy with nickel over copper plating.

Does it include mounting hardware?

Yes, includes assembly hardware and strain relief, with mating screws 4-40.

What type of cable is compatible?

Round cable.

What is the color of the backshell?

Silver.
