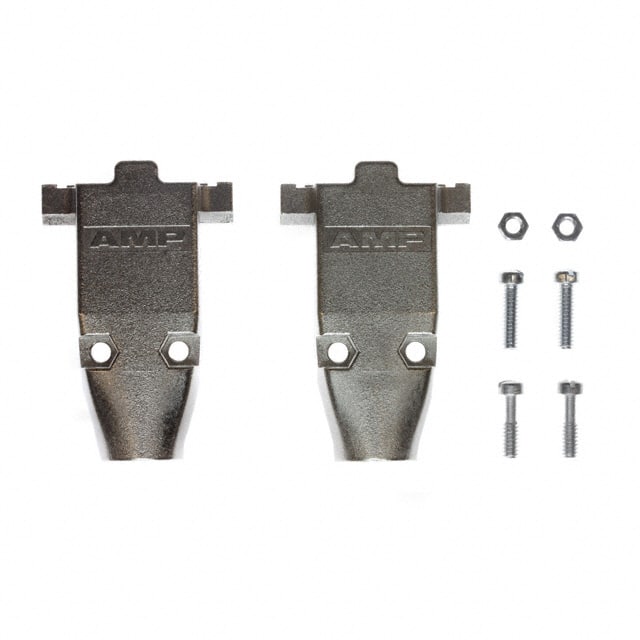

5745171-2 D-Sub backshell for 9-position connectors, 180° cable exit, shielded. Made of zinc alloy with nickel over copper plating, silver color.
Mfr Part #:

5745171-2

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
D-Sub backshell for 9-position connectors, 180° cable exit, shielded. Made of zinc alloy with nickel over copper plating, silver color.
✓ Total Stock: 160 pcs

5745171-2 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5745171-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
Shielding
View Similar Products (0)

5745171-2 Description

Short technical summary and product information.

The TE Connectivity 5745171-2 is a two-piece backshell designed for D-Sub connectors. It accommodates 9 positions and features a 180° cable exit. The backshell is fully shielded to provide electromagnetic interference (EMI) protection for signal integrity.



Constructed from metal zinc alloy with a nickel over copper plating, the backshell offers durability and corrosion resistance. It has a silver color and is designed for use with round cables. Included hardware consists of assembly hardware and strain relief to secure the cable and connector.



The backshell includes mating screws 4-40 for secure attachment to the connector. This accessory is suitable for applications requiring reliable cable management and shielding in D-Sub interconnect systems.

5745171-2 Quick Information

Product Type: D-Sub Backshell
Canonical Name: TE Connectivity 5745171-2 D-Sub Backshell 9 Position 180° Shielded
Subcategory: D-Sub Backshell

5745171-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5745171-2 Features

  • Two-piece backshell for D-Sub connectors.
  • Shielded design for EMI protection.
  • 9-position, 180° cable exit.
  • Zinc alloy with nickel over copper plating.
  • Includes strain relief and 4-40 screws.

5745171-2 Applications

  • Connects to standard 9-pin D-Sub connectors.
  • Provides strain relief for round cables.
  • Shielding reduces electromagnetic interference.

5745171-2 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the backshell support?

9 positions.

What is the cable exit angle?

180°.

Is the backshell shielded?

Yes, it is shielded.

What material is the backshell made of?

Metal, zinc alloy.

What is the plating material?

Nickel over copper.

What color is the backshell?

Silver.

What hardware is included?

Assembly hardware and strain relief.
